Postby Ranchero50 » Tue Oct 04, 2016 5:48 pm

Free wood... Rotted Cherry, green Tulip Poplar and green Cherry on the ground that didn't fit on my truck. Good couple hours. Tarped and strapped it for the ride home. Truck was a little lazy with the weight but cruised along fine.



Now I have to process and store it before Matthew shows up.
'70 F-350 CS Cummins 6BT 10klb truck 64k mile Bahama Blue

Contact me for CNC Dome Lamp Bezels and Ash Tray pulls.

Builder of dreams, breaker of hearts. Play nice or go away.

User avatar
Ranchero50
Moderator
Moderator
Posts: 5151
Joined: Wed Nov 08, 2006 7:02 pm
Location: Maryland, Hagerstown
Contact:

Re: The chronicles of Lou, '70 F350 dually Cummins project

Postby Ranchero50 » Mon Nov 07, 2016 7:25 pm

Just some updated pics showing the trucks new front sneakers. Same height as the back but much wider up front. Green thing is a John Deere feed grinder I spent of ton of time rat proofing and fixing some worn out mechanicals on.





Truck is running great. I bought a head gasket kit for it, working on affording studs now. $307 for the gasket kit from Cummins and $400+ for the ARP stud kit hurts. Coolant system became pressurized a couple weeks ago so I think I lifted the head at least once. Nothing blew but the hoses shouldn't be stiff when it's cold.

Truck's currently got a load of plaster and lath boards waiting to go to the dump in the morning.
'70 F-350 CS Cummins 6BT 10klb truck 64k mile Bahama Blue

Contact me for CNC Dome Lamp Bezels and Ash Tray pulls.

Builder of dreams, breaker of hearts. Play nice or go away.

hfdco4
Preferred User
Preferred User
Posts: 324
Joined: Mon Apr 01, 2013 1:45 pm

Re: The chronicles of Lou, '70 F350 dually Cummins project

Postby hfdco4 » Thu Nov 10, 2016 7:56 am

Great to see pics of the truck, sorry to hear you need to pull the head. Will you do any upgrades while it's apart?
:fr: FE390PC
1970 F250 4x4
2016 F150 4x4 2.7 ECO
Gone 1997, 1999 & 2003 F150 4x4s
Gone 1988, 1989 & 1991 Broncs

User avatar
Ranchero50
Moderator
Moderator
Posts: 5151
Joined: Wed Nov 08, 2006 7:02 pm
Location: Maryland, Hagerstown
Contact:

Re: The chronicles of Lou, '70 F350 dually Cummins project

Postby Ranchero50 » Thu Nov 10, 2016 2:12 pm

I do have a fuel pin for it and the turbo has been welded and recut. I might run 3" innercooler lines and thought about making another top plenum similar to the P pump 6bt's.
'70 F-350 CS Cummins 6BT 10klb truck 64k mile Bahama Blue

Contact me for CNC Dome Lamp Bezels and Ash Tray pulls.

Builder of dreams, breaker of hearts. Play nice or go away.

hfdco4
Preferred User
Preferred User
Posts: 324
Joined: Mon Apr 01, 2013 1:45 pm

Re: The chronicles of Lou, '70 F350 dually Cummins project

Postby hfdco4 » Thu Nov 10, 2016 2:49 pm

Good upgrades, did you make a tab for the killer Cummins pin issue?
:fr: FE390PC
1970 F250 4x4
2016 F150 4x4 2.7 ECO
Gone 1997, 1999 & 2003 F150 4x4s
Gone 1988, 1989 & 1991 Broncs

User avatar
basketcase0302
100% FORDified!
100% FORDified!
Posts: 5700
Joined: Thu Jan 26, 2006 7:11 am
Location: Tennessee, Chattanooga (Choo-Choo town)

Re: The chronicles of Lou, '70 F350 dually Cummins project

Postby basketcase0302 » Fri Nov 11, 2016 8:05 pm

Lou looks good still Jamie.
I see folks around here selling the cherry wood for projects, (one guy had it listed as "bowl turning blanks").
Is there not a market for it there or anyone who'd want if for firewood-isn't it a hot burning wood?
Have six of them here in the yard, (mature).
Jeff
viewtopic.php?f=22&t=46251
http://s240.photobucket.com/user/basket ... et%20build
71 F-350 dually flatbed, "little 302" (some folks here call them) .030 over V-8 with a "baby"C-6, B & M "ghetto" truckshifter, Dana70/4.11 ratio, intermittent wipers, tilt steering, full LED lighting on the flat bed, and no stereo yet (this way I can hear the rattles to diagnose)! SOLD!
A lot of "oddball" Ford parts collected from working on them for 34 years now!
2008 Ford Escape 4 x 4

User avatar
Ranchero50
Moderator
Moderator
Posts: 5151
Joined: Wed Nov 08, 2006 7:02 pm
Location: Maryland, Hagerstown
Contact:

Re: The chronicles of Lou, '70 F350 dually Cummins project

Postby Ranchero50 » Sun Nov 13, 2016 7:51 pm

So, today was a truck day, yippee. My hydraulic tank has been slowly leaking from some cracks int he plastic housing and finally forced the issue of me doing something about it. Spent some time making a new flange on the mill and am going to bend up some aluminum for a tank in the morning. Should have some pics then too.

BC, Cherry burns really hot and lasts a long time plus it smells nice coming out the chimney. I've been burning the poplar one fire at a time because it starts really well with some old lath board as tender.
'70 F-350 CS Cummins 6BT 10klb truck 64k mile Bahama Blue

Contact me for CNC Dome Lamp Bezels and Ash Tray pulls.

Builder of dreams, breaker of hearts. Play nice or go away.

User avatar
Ranchero50
Moderator
Moderator
Posts: 5151
Joined: Wed Nov 08, 2006 7:02 pm
Location: Maryland, Hagerstown
Contact:

Re: The chronicles of Lou, '70 F350 dually Cummins project

Postby Ranchero50 » Wed Nov 16, 2016 4:38 pm

So, machined a flange for the tank, then started making a small metal bender before grabbing a 20% off coupon and getting one from Harbor Freight. Other than needing to clamp the top plate to the bender it worked out really well on the 16 gauge aluminum.

Used the Tig on the sheet metal and had to Mig the heavy stuff. I'm only feeding my Synchrowave 350 with a 30A breaker instead of the 150 amp on it needs.

An old bicycle seat post turned into a new fill / vent spout.

Almost twins...

And installed. Of course as I was tightening the one bolt that bolds the pump to the frame, is stripped out. Someone had pushed a standard bolt into the metric hole. I hate that and ended up using a bungie cord until I can get it into the garage to weld up some tabs for the tank.

'70 F-350 CS Cummins 6BT 10klb truck 64k mile Bahama Blue

Contact me for CNC Dome Lamp Bezels and Ash Tray pulls.

Builder of dreams, breaker of hearts. Play nice or go away.

hfdco4
Preferred User
Preferred User
Posts: 324
Joined: Mon Apr 01, 2013 1:45 pm

Re: The chronicles of Lou, '70 F350 dually Cummins project

Postby hfdco4 » Wed Nov 16, 2016 10:00 pm

Looking good.
:fr: FE390PC
1970 F250 4x4
2016 F150 4x4 2.7 ECO
Gone 1997, 1999 & 2003 F150 4x4s
Gone 1988, 1989 & 1991 Broncs

User avatar
Ranchero50
Moderator
Moderator
Posts: 5151
Joined: Wed Nov 08, 2006 7:02 pm
Location: Maryland, Hagerstown
Contact:

Re: The chronicles of Lou, '70 F350 dually Cummins project

Postby Ranchero50 » Sat Jan 07, 2017 4:09 pm

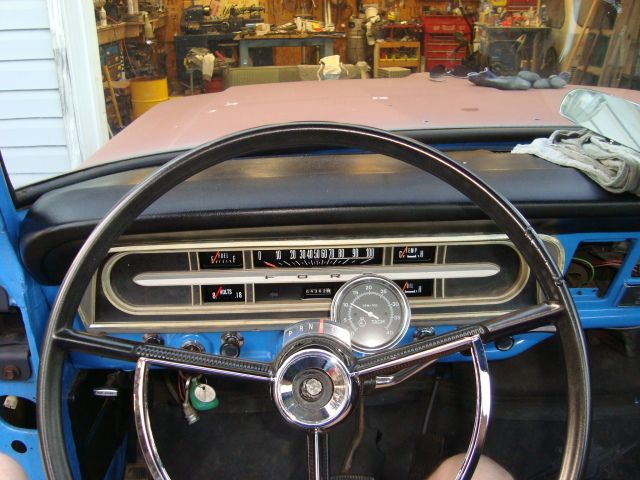

Somewhere along the project I forgot to post up a pic of the finished volt meter, here it is. I used a label print program at work to make the scale.


It's one of those little projects that make the whole driving experience so much better.
'70 F-350 CS Cummins 6BT 10klb truck 64k mile Bahama Blue

Contact me for CNC Dome Lamp Bezels and Ash Tray pulls.

Builder of dreams, breaker of hearts. Play nice or go away.

Lone Ranger
Preferred User
Preferred User
Posts: 463
Joined: Tue Jun 21, 2016 2:27 pm
Location: Northern Michigan

Re: The chronicles of Lou, '70 F350 dually Cummins project

Postby Lone Ranger » Sun Jan 08, 2017 3:34 pm

That voltmeter is sweet! Looks original too!
1972 f100 4x4 4 inch lift with dump box kit-sold
1969 f250 4x4 highboy in progress.
viewtopic.php?f=22&t=85251
Kyle

hfdco4
Preferred User
Preferred User
Posts: 324
Joined: Mon Apr 01, 2013 1:45 pm

Re: The chronicles of Lou, '70 F350 dually Cummins project

Postby hfdco4 » Mon Jan 09, 2017 12:38 pm

Can you tell me what you used to make your Volt Meter? I did a quick look through but didn't see the particulars.
:fr: FE390PC
1970 F250 4x4
2016 F150 4x4 2.7 ECO
Gone 1997, 1999 & 2003 F150 4x4s
Gone 1988, 1989 & 1991 Broncs

User avatar
Ranchero50
Moderator
Moderator
Posts: 5151
Joined: Wed Nov 08, 2006 7:02 pm
Location: Maryland, Hagerstown
Contact:

Re: The chronicles of Lou, '70 F350 dually Cummins project

Postby Ranchero50 » Mon Jan 09, 2017 11:46 pm

I had a whole thread on the volt meter install but lost it so here's the abridged version.

Found one of these at Carlisle for a couple bucks.

Comparison to the stock ammeter.

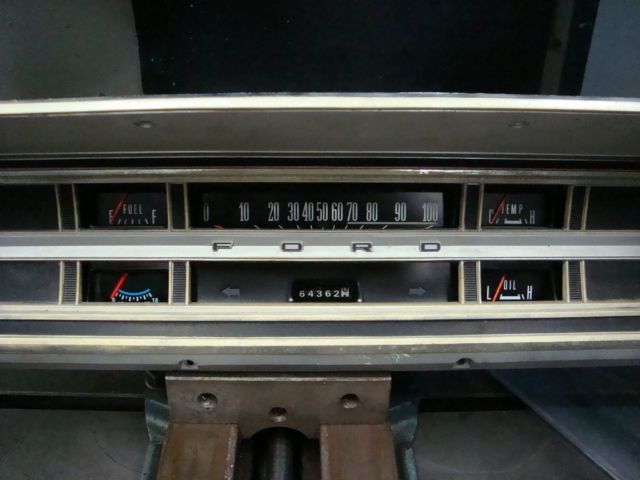

Popped the bezel off with a small screwdriver to take the gauge apart. Ammeter behind it for comparison.
