Reflector Assembly



NOTE: Part and Numbers included on this page pertain to the F100/350 reflector assemblies. Items listed might have other applications (other than '67-'72 F100/350 models) that are not included here.

 Body Codes:
 Cab Parts

81 - Conventional cab
  84 - Cowl
  85 - Cowl/Windshield
 Behind Cab Parts

83 - Flareside box
  86 - Platform/Rack
  99 - Styleside box

All part numbers and specifications are as reported in the 1964-1972 Ford Truck Master Parts Catalog 1975 Final Issue unless otherwise noted.

13380 - Reflector Assembly
Includes attaching parts - Also refer to Groups 15A201 and 15442

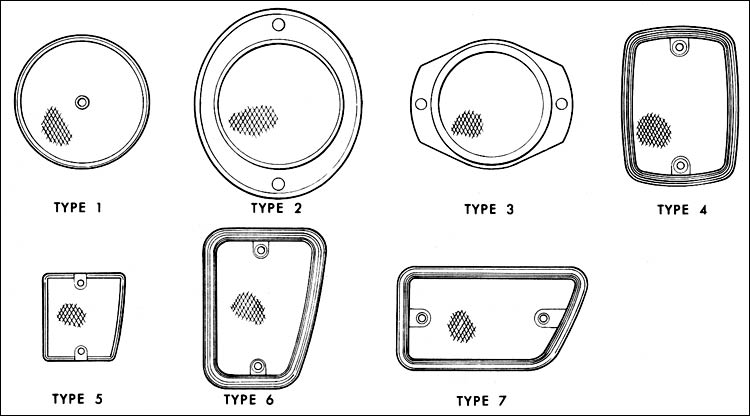

YEAR MODEL LOCATION TYPE COLOR REMARKS QTY. PART NUMBER
'67 F100/350 Front fender 4 Amber   2 *C7TZ-13380-D
'64, '67 F100/600 (80, 86) Front of platform 3 Amber   2 *C1TB-13380-B
'68-'72 F100/600 (80, 86) Front of platform 4 Amber   2 *C7TZ-13380-D
'64-'67 F-T100/1100 Grille 3 Amber   2 *C1TB-13380-B
'67-'69 F100/750 Grille 4 Amber   2 *C7TZ-13380-D
'67-'69 F100/350 (83) Rear 4 Red   2 *C7TZ-13380-C
'67-'69 F100/350 (83)
"Before Ser. F70,001"
Rear side 4 Red   2 *C7TZ-13380-C
'69 F100/350 (83)
"From Ser. F70,001"
R.H. & L.H.- rear side reflectors
refer to basic group
15A201 (marker lamps)

'64-'67 F100/600 (80, 86) Rear of platform 2 Red   2 *C1TZ-13380-C
'68-'72 F100/600 (80, 86) Rear of platform 4 Red   2 *C7TZ-13380-C
'67 F100/350 (99) Rear side 4 Red   2 *C7TZ-13380-C
'67-'69 F100/250 (99) R.H.-below tail lamp 6 Red   1 C7TZ-13380-A
'67-'69 F100/250 (99) L.H.-below tail lamp 6 Red   1 C7TZ-13380-B
'68-'69 F100/250 (99)
"Before Ser. F70,001"
R.H.-rear side 7 Red   1 C8TZ-13380-A
'68-'69 F100/250 (99)
"Before Ser. F70,001"
L.H.-rear side 7 Red   1 C8TZ-13380-B
'69 F100/250 (99 )
"From Ser. F70,001"
R.H. & L.H.- rear side reflectors
refer to basic group
15A201 (marker lamps)

'70-'72 F100/250 (99) R.H.-below tail lamp 5 Red Less bezel 1 D0TZ-13380-C
'70-'72 F100/250 (99) L.H.-below tail lamp 5 Red Less bezel 1 D0TZ-13380-D
'70-'72 F100/250 (99) R.H.-below tail lamp 5 Red Incl. bezel 1 D0TZ-13380-A
'70-'72 F100/250 (99) L.H.-below tail lamp 5 Red Incl. bezel 1 D0TZ-13380-B
* Must be used in states legally requiring Class "A" reflectors
13A493 - Pad, Rear Reflector Mounting
  '67 F100/250 (Pickup 99) C7TZ-13A493-E R.H. & L.H. - body side rear
  '68-'69 F100/250 (Pickup 99) C8TZ-13A493-B R.H. - body side rear
C8TZ-13A493-B L.H. - body side rear



Symbol (in the text listings or exploded-view diagram) indicates part is not supplied for service due to the following:
  a. Part is superseded and replaced as indicated in the description column of text
b. Part can be improvised as indicated in the description column of text
c. Due to it's function there would be little or no demand
