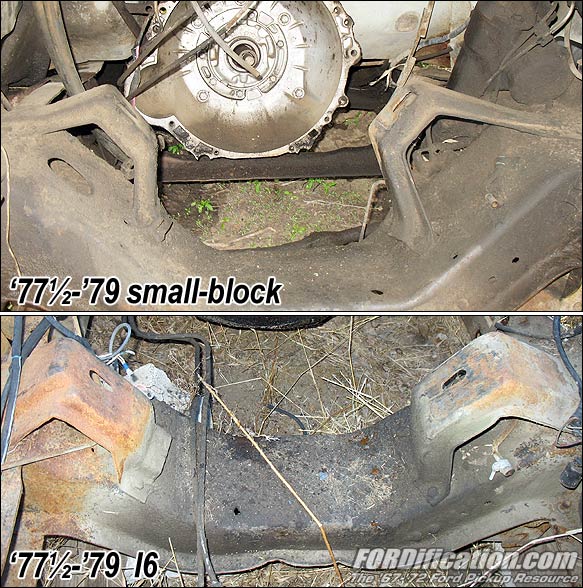

  Discussion Forums

  Photo Galleries



  Service Bulletins (TSBs)

  Decoding Your VIN

  Diagrams & Schematics

  Links & Resources

  In the Movies

  Downloads
  Member Meet & Greets

  In the Media

  Site Index

 MISC / PERSONAL

  My Truck Projects

  My Heinz 57 '67

  I've Been Censored!

  Contact



You are here: Home Tech Articles & Tutorials Engine/Transmission Comparison Photos of Engine Perches
Back to Technical Index

Comparison Photos of Engine Perches


NOTE: The engine stands/perches shown on this page are 2WD versions only (unless specified). The 4WD versions are completely different and the two styles will not interchange.

Fig. 1

Fig. 2


There are only three styles of engine perches for '65-'79 trucks:

   - FE/I6 - Same perch, but mounted in different frame holes
   - Windsor & 351M/400 - Available starting in mid-'69
   - 429/460

FE/I6 engine stands vs. Windsor stands

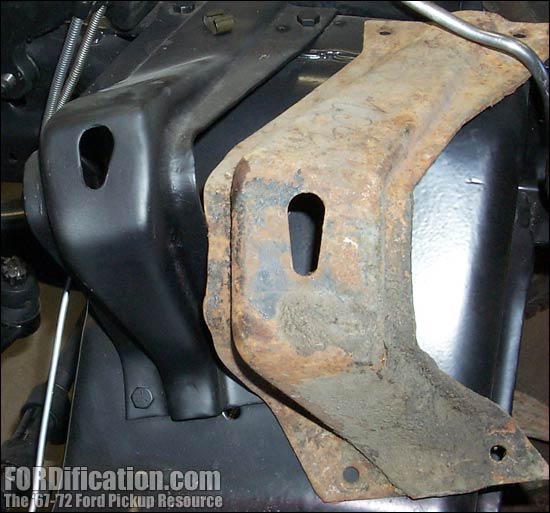

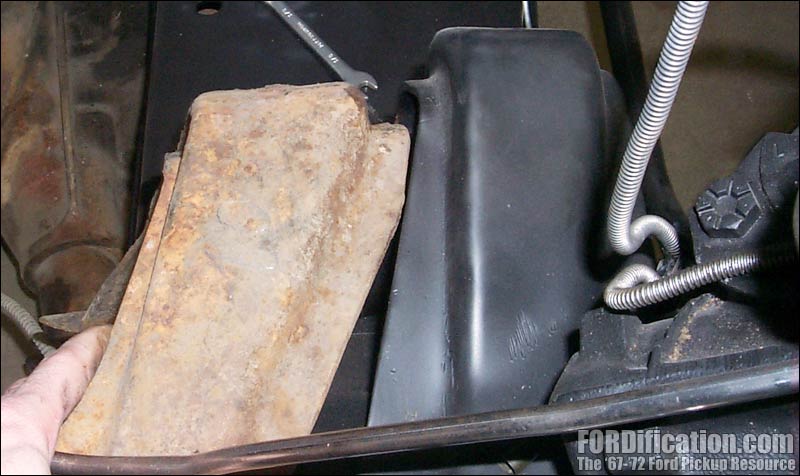

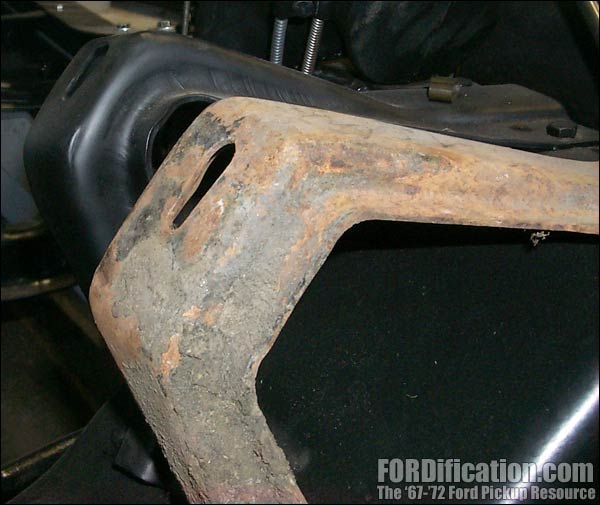

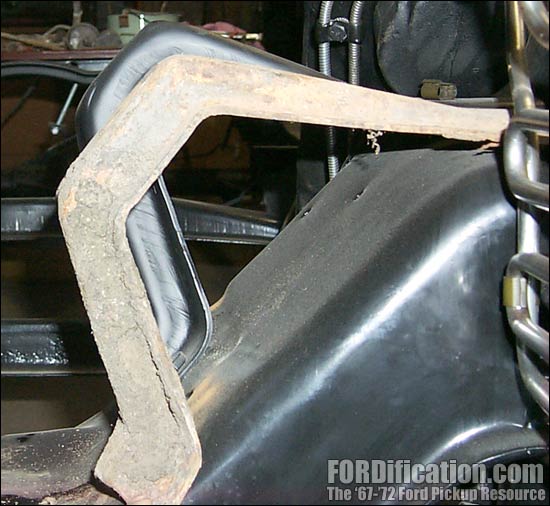

The four photos here compare the FE/I6 engine stands with the Windsor stands. In these photos, the black powdercoated FE/I6 stands are bolted to the frame and the rusty 302 stands are simply set next to them for comparison purposes.


Fig. 3

Fig. 4

The Windsor stands are 1" lower in overall height than the FE/I6 versions, as evidenced in Figs. 1 and 2. Also, the flat portion across the top where the motor mount sits is about an inch wider and several inches longer. However, once they're bolted up to the frame and crossmember, an FE will bolt up to them just fine....your engine will just sit 1" lower. You should still have plenty of oil pan clearance. This would be a great mod to help lower your truck's center of gravity for slightly better handling. However, you COULD have driveline angle problems, due to dropping the engine 1" but not dropping the transmission a similar amount.

Conversely, bolting up a 302 using the FE/I6 stands will cause your engine to sit 1" higher and I've been told this could also cause problems with U-joint bind due to improper driveshaft angles.

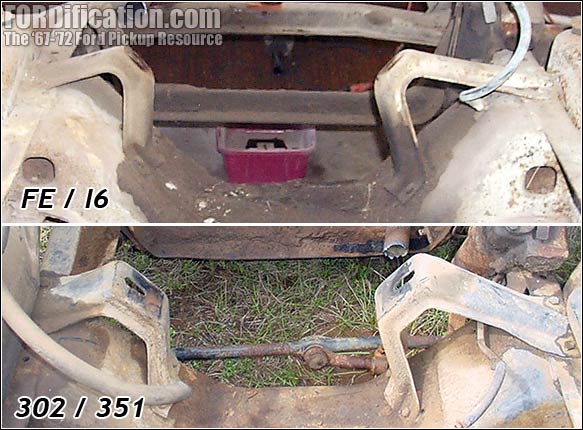

Shown below is a comparison shot of the two styles installed:




Fig. 5

The small-block stands were also used in the '73-'79 trucks with 351M/400 engines and will work just fine for swapping a small-block into an earlier truck.

In case you're going to start hitting NOS dealers or high-end salvage operations, the new part numbers for the small-block stands are:

  • D0TZ-6028-A   -  right stand

  • D0TZ-6029-A   -  left stand

Note: When installing Windsor stands into a '67, '68 or early '69 truck, the front crossmember won't be drilled for the lower attachment points on the engine perches, since the 302 wasn't a factory offering until 'mid-'69. You'll have to bolt up the perches up using the top holes and then drill the lower holes, using the perch as a template.

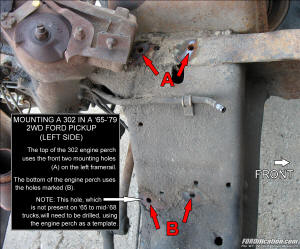

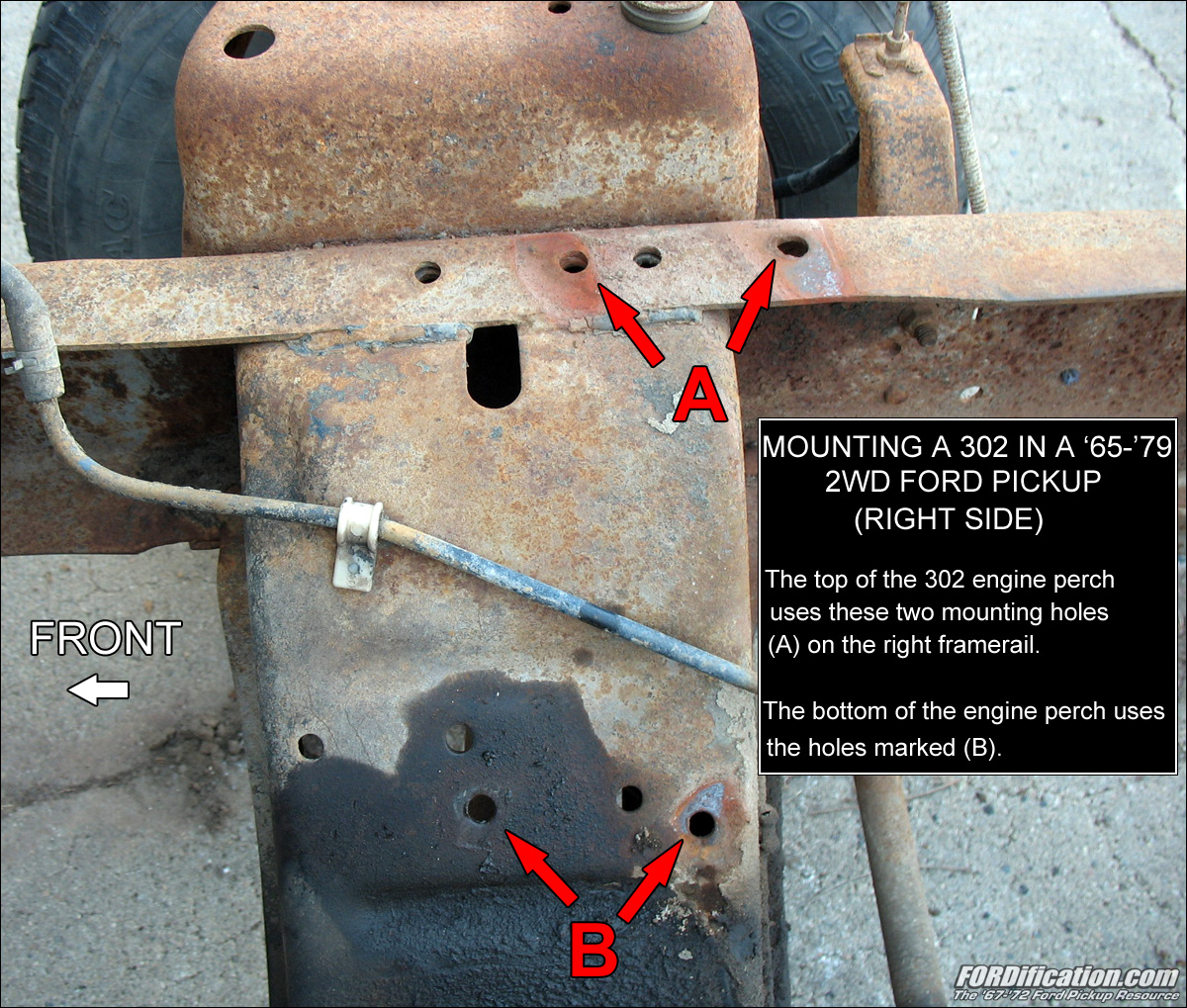

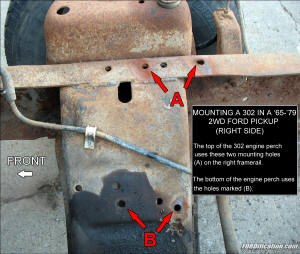

How to correctly position Windsor stands:


LEFT SIDE

RIGHT SIDE



Fig. 6

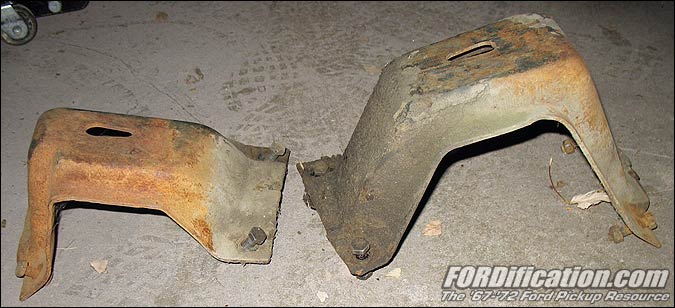

- These are the I6 (300ci) engine perches from a '79 F150.

IMPORTANT: There's a rumor floating around that Ford redesigned the front crossmember for the '77½ through '79 2WD trucks, which also meant the engine perches had to be redesigned, so these trucks couldn't be used as engine perch donors for earlier trucks. However, while there were redesigns on stands in '77½, it wasn't due to a change in the crossmember. (In fact, '79 6-cylinder trucks use a D4TZ (left) and a C5TZ (right) stand. That means one stand never changed from inception!) The '79 trucks use a D6TZ-5019-B frame front crossmember which is also the replacement for '73-'78 and fits all F100/F150/F250 and F350 2WD with Twin I-beams.

REVISIONS:
 - The FE stands were revised in '74 and have D4TZ numbers
 - The Windsor-351M/400 stands were revised in '77 (D7TZ numbers) but are used as the replacement for all 73-79 Twin I-beam trucks
 - The right-hand 6-cylinder stand for '74 was a D4TZ but was replaced in '75 by the C6TZ right-hand, and then in '78 both 6-cylinder stands were redesigned and had D8TZ numbers.

Ford discontinued the 390 V8 in the F-100 in 1975 and both the 360 and 390 in all light-duty trucks by 1976....except in CA, where you couldn’t get a 390 in an F100 after '73. Therefore, to install an FE into a '76-'79 truck you simply use the I6 stands (Fig. 6) when doing this swap.



Fig. 7


Here are a couple more comparison shots:

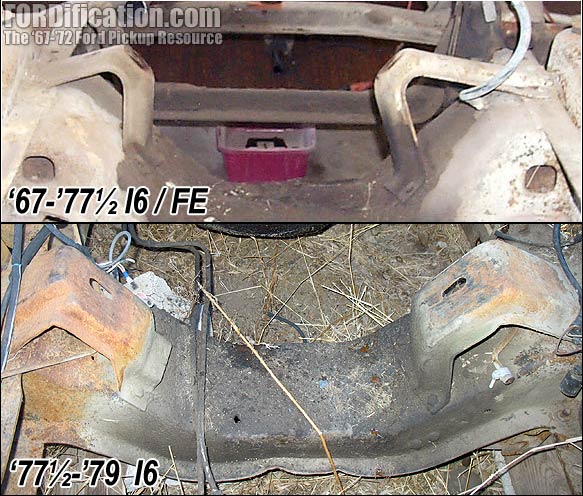

Fig. 8 - TOP: '67 thru early '77 I6/FE perches
BOTTOM: Late '77 thru '79 I6 perches, which can also be used with FE engines

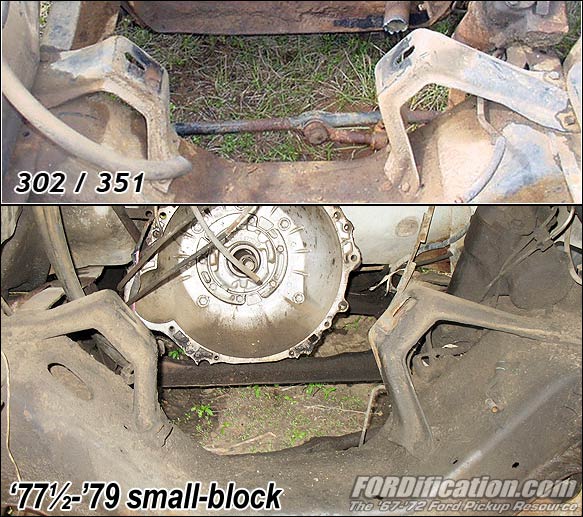

Fig. 9 - A comparison of the '67 thru early '77 vs. the late '77 thru '79 small-block perches

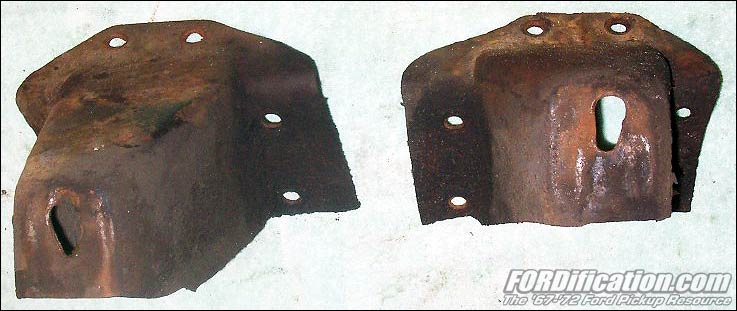

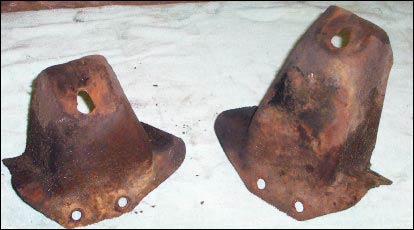

Here are a couple pictures of
FE (352, 360, 390) stands for F100/F250 4x4.


Fig. 10

Fig. 11
4x4 Engine Perch Part Numbers
(Bracket, Engine Front Support)
Bumpside ('67-'72)
'67-'72 F100/F250 4x4 w/ 240/300 engine
Left: C6TZ-6029-E
Right: C6TZ-6028-C
'67-'72 F100 4x4 w/ 352/360 engine
Left: C6TZ-6029-A
Right: C6TZ-6028-D

'68-'72 F250 w/ 360 engine
Left: C6TZ-6029-F
Right: C6TZ-6028-D
Dentside ('73-'79)
240/300
'73-'76 F100/250
Left: C6TZ-6029-E
Right: D6TZ-6028-A

'77 F150/250 "Before Ser. 020,001"
Left: D7TZ-6029-C
Right: D6TZ-6028-A

'77 F150/250 "From Ser. 020,001 to Y20,001"
'77-'78 F150 "From Ser. Y20,001"
Left: D6TZ-6029-A
Right: D6TZ-6028-A

'79 F150
Left: D6TZ-6029-A
Right: D8TZ-6028-C

'77-'79 F250
Left: D7TZ-6029-E
Right: D7TZ-6028-E

360/390
'73-'76 F100/250 (exc. Crew cab) w/ 360/390 engine
Left: C6TZ-6029-F
Right: C6TZ-6028-D

'74/ F250 Crew cab w/ 360/390 engine
Left: D3TZ-6029-B
Right: D3TZ-6028-C

351M/400
'77-'79 F150/250 "Before Ser. Y20,001"
'77 F150 "From Ser. CA0,001"
'78 F150 Reg. cab "Before Ser. CA0,001"
Left: D7TZ-6029-A
Right: D7TZ-6028-A (replaced by D8TZ-6028-C - May 1979)

'78 F150 Reg. cab "From Ser. CA0,001"
'79 F150 Reg. cab
Left: D8TZ-6029-D
Right: D8TZ-6028-C

'77-'78 F250 "From Ser. Y20,001"
'78 F150 Super cab
Left: D7TZ-6029-D
Right: D7TZ-6028-D

'79 F150/350 Reg. & Super cab
Left: D7TZ-6029-D
Right: D8TZ-6028-D


Fig. 12

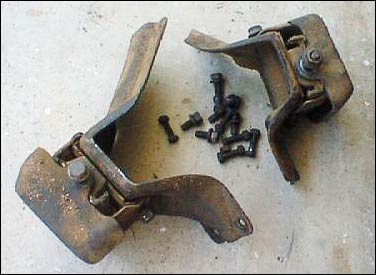

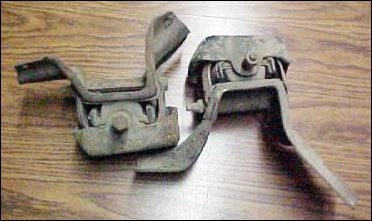

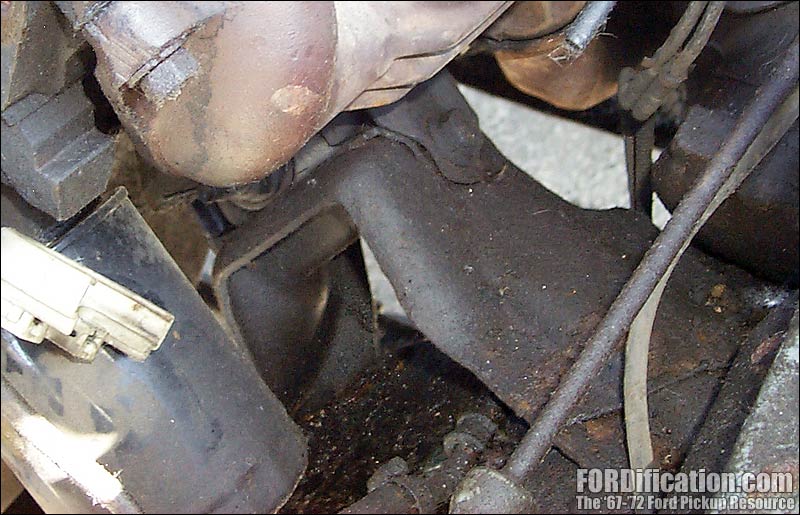

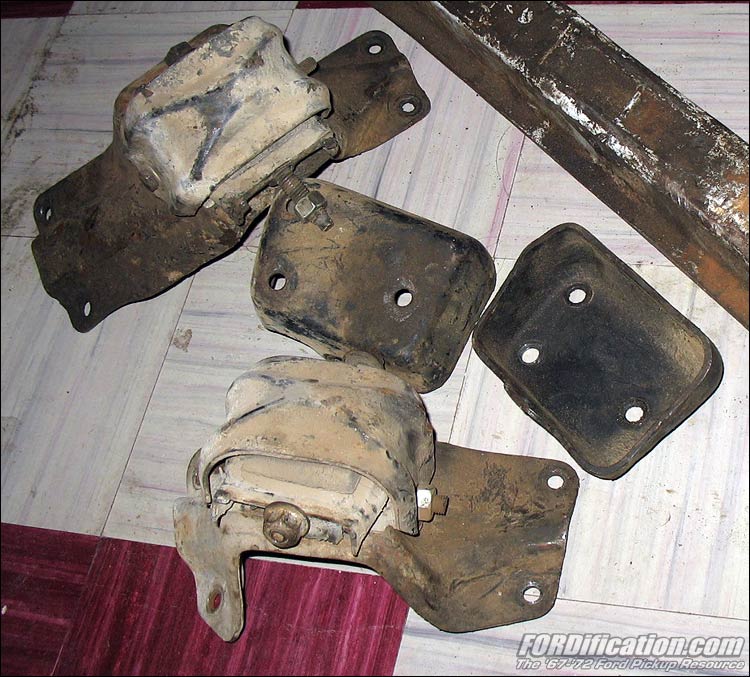

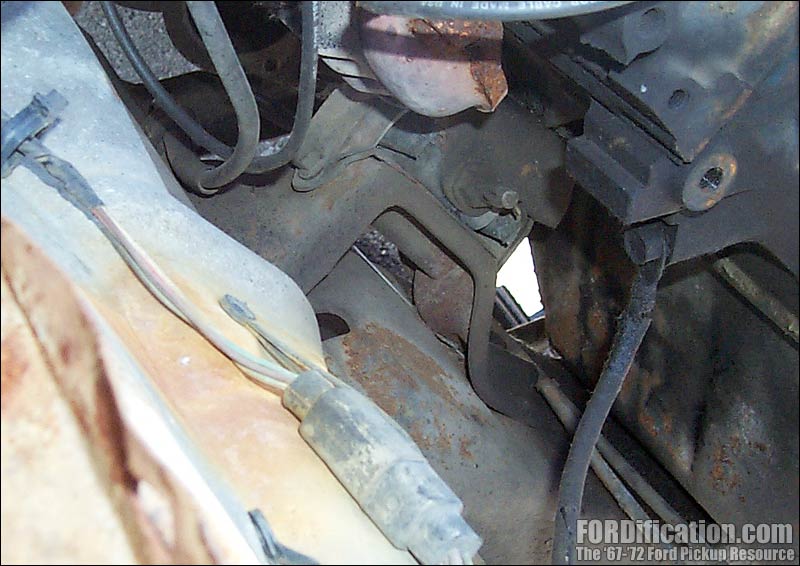

Here are a few shots of the 429/460 2WD engine stands. Figs. 12 and 13 were taken of a 460 mounted in a mid-'70s F350, but will fit all '65 thru '79 F100 thru F350 2WD trucks. Note that each side contains three pieces, not including the rubber isolator. The 460 stands are PN's D3TZ-6028-A and D3TZ-6029-A.


Fig. 13


Fig. 14

Fig. 15

Fig. 16
