Pulley, Water Pump



NOTE: Items listed might have other applications (other than '67-'72 F100/350 models) that are not included here.

All part numbers and specifications are as reported in the 1964-1972 Ford Truck Master Parts Catalog 1975 Final Issue unless otherwise noted.

8509 - Pulley, Water Pump

Year Model Cyl. CID Description No. of
Sheaves
O.D.
(Inches)
QTY. Part
Number
'64 F100/600 - exc. X/C fan 6 223   1 6 5/8 1 C4TZ-8509-B
'64 F100/F600 - 42, 52, 60 amp. alts. 6 223   2 6 11/16 1 C3TZ-8509-R
'64 F350 - duals, F500/600 - X/C fan & 30 amp. gen.
'65-'72 F100/350 - single r/wheels,
w/38, 45, 55 amp. alternator - w/o T/E
6 240, 300 #C5UE-A 1 6 63/64 1 C5AZ-8509-A
'66-'72 F350 - dual r/wheels, w/38, 45, 55 alts. 6 240
'65 F100/350 - 60 amp. alternator 6 240, 300 #C8TE 8509-A 3 6 3/16,
6 31/32
1 C8TZ-8509-A
'65 F350 - dual r/wheels, 38, 45 & 55 alt. 6 300
'66 F350 - dual r/wheels, 38, 45, 55 alts. 6 300
'66 F350 - duals - 60 alt. - "From Ser. 760, 001" 6 300
'66 F100 - with 38, 45, 55, 60 alt. & T/E 6 240, 300 #C6TE 8509-B 3 5 11/32,
7
1 C6TZ-8509-B
'67F100 - w/38, 45, 55, 65 alt. & T/E 6 240, 300
'66 F100/350 - single r/wheels, P/S & 60 amp. alternator - w/o T/E 6 240, 300 #C8TE 8509-A 3 6 3/16,
6 31/32
1 C8TZ-8509-A
'66 F350 - dual r/wheels-60 amp. alt. 6 240
'66 F350 - duals-60 alt. - "Before Ser. 760,001" 6 300
'67-'72 F100/250 - 65 alt. w/o T/E 6 240, 300
'67-'72 F350 - single or dual r/wheels - 65 alt 6 240, 300
'67-'72 F350 - dual r/wheels, w/X/C 6 300
'66-'67 F100/250 - 4x2 with A/C 6 240 #C6AE-G 2 5 27/32 1 C6AZ-8509-G
'68-'71 F100/350 - with A/C 6 240, 300
'68-'72 F100 - 4x2 and 4x4 with T/E or Imco 6 240, 300 #C8TE-8509-A 3 6 3/16,
6 31/32
1 C8TZ-8509-A
'64 F100/700 (H/V brakes)
exc. alternators or 5 blade fan
8 292 Steel stamping
use w/B7T-8538-A
r/b C1TE-8509-F (8-73)
1 6 21/64 1 C0TE-8509-F
'64 F100/700 - 42, 52,60 amp. alts, or 5 blade X/C fan 8 292 2 6 19/64 1 C1TE-8509-F
'65 F100/250 - 4x2 8 352 1 6 51/64 1 B7A-8509-C
'66-'67 F100 - 4x2 - 38, 45, 55 alt. w/o T/E
'65-'66 F100/250 - with A/C 8 352 r/b C7AZ-8509-B (8-73) 2 6 13/64 1 C4SZ-8509-A

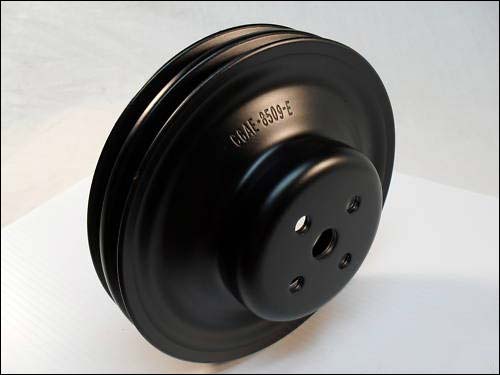

'65 F100/350 8 352 #C6AE-8509-E
2 6 53/64 1 C6AZ-8509-B
66-'67 F100/250 - 4x4, F250 4x2, F350
38, 45, 55 alt. w/o T/E
8 352
'66 F100/350 - 60 alt. w/o T/E 8 352
'67 F100 - 4x2 - 60 alt. 8 352
'67 F100-4x2, (F350-duals) - 65 alt. 8 352
'66 F100 - w/P/S, 38, 45, 55, 60 alt. & T/E 8 352 #C6TE-8509-A 3 5 5/8,
6 53/64
1 C6TZ-8509-A
'67 F100 - w/38, 45, 55, 65 alt. & T/E
'68 F100 (with T/E) 8 360, 390 #C8AE-8509-C 3 6 1/4
7 1/8
1 C8AZ-8509-D
'68-'72 (F100 4x2) (F250 4x2 std. cooling)
w/o T/E or A/C
8 360, 390 #C8AE-8A528-B 1 7 15/64 1 C8AZ-8509-A
'68-'72 F100/350 - with A/C 8 360, 390 #C8AE-8509-B 2 6 5/8 1 C8AZ-8509-C
'68-'72 (F100/250 4x4) (F250 4x2 X/C) - w/o T/E or A/C
F350 - w/o T/E or A/C
8 360, 390 #C8AE-8509-A 2 7 15/64 1 C8AZ-8509-B
'69 F100 (4x2) - exc. P/S & exc. A/C 8 302 #C90E-8509-E 1 6 61/64 1 C90Z-8509-B
'69-'72 F100 (4x2) - A/C, w/or w/o P/S 8 302 #C90E-8509-F 1 6 15/16 1 C90Z-8509-C
'69-'72 F100 (4x2) w/idler pulley - w/o P/S 8 302 #C90E-8509-G 1 6 61/64 C90Z-8509-D
# Identification Marking



Symbol (in the text listings or exploded-view diagram) indicates part is not supplied for service due to the following:
  a. Part is superseded and replaced as indicated in the description column of text
b. Part can be improvised as indicated in the description column of text
c. Due to it's function there would be little or no demand
