Factory 1967 AM Radio Dimensions



The following pictures and info pertain to the one-year-only AM radio factory-installed on the 1967 trucks. These radios are smaller than the '68-up units, and the smaller factory openings in the dash won't allow the installation of later radio or stereo units. These dimension are provided for research purposes when trying to find a suitable replacement aftermarket radio.

All pictures and measurements courtesy of Brian Taylor - click to enlarge

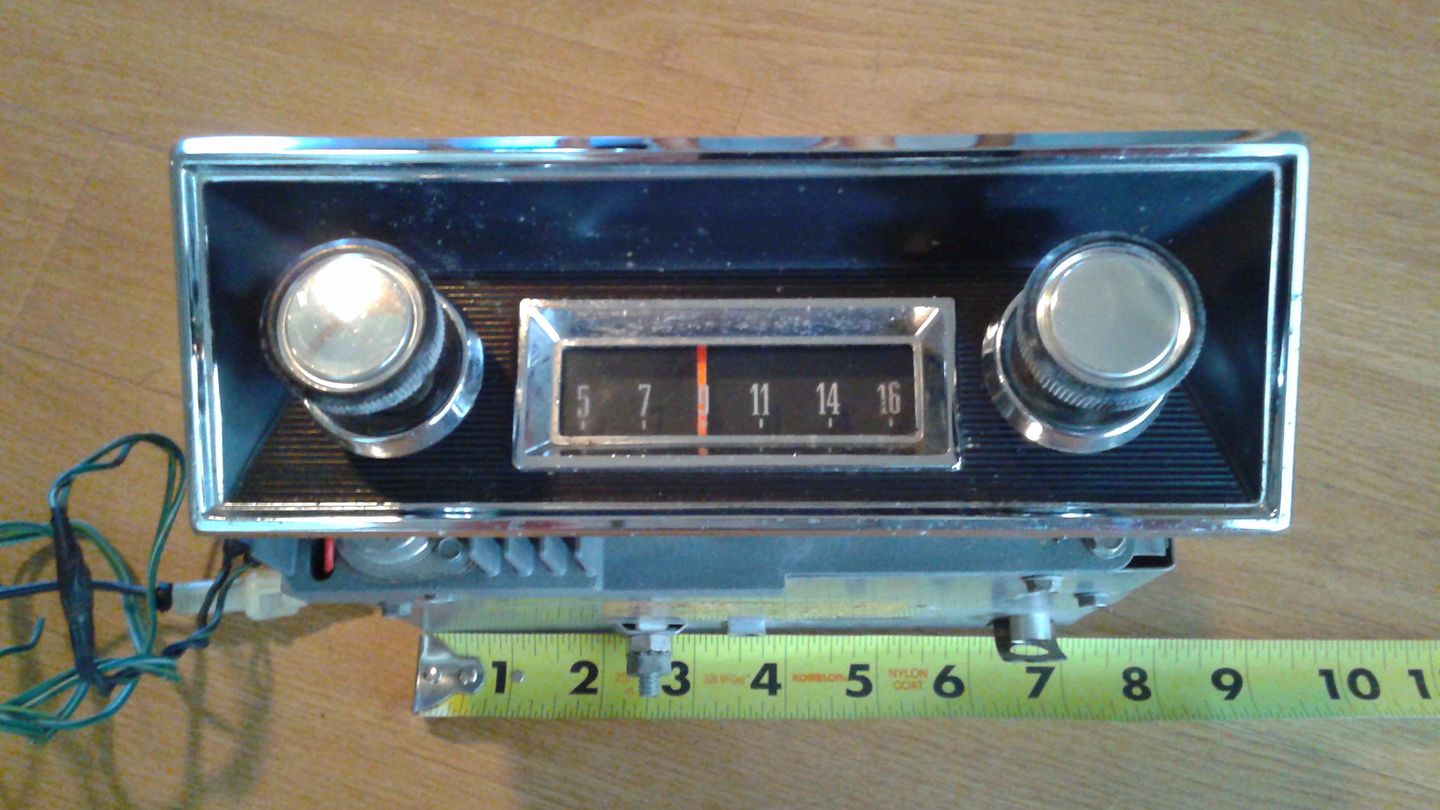

Fig. 01

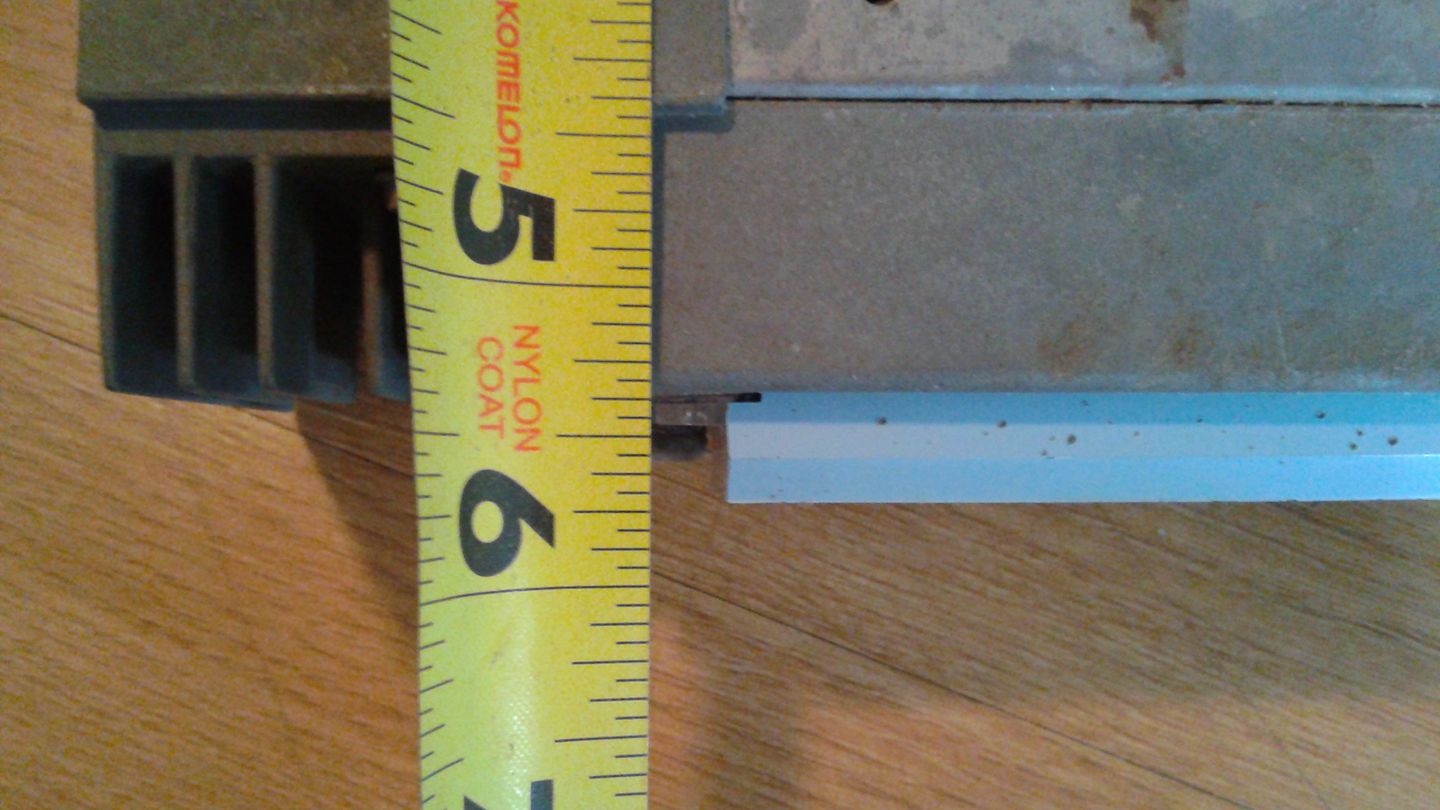

Fig. 02 - Case 5-3/8" front to back WITHOUT 1/8" rear screw heads or attached tuning number plate.

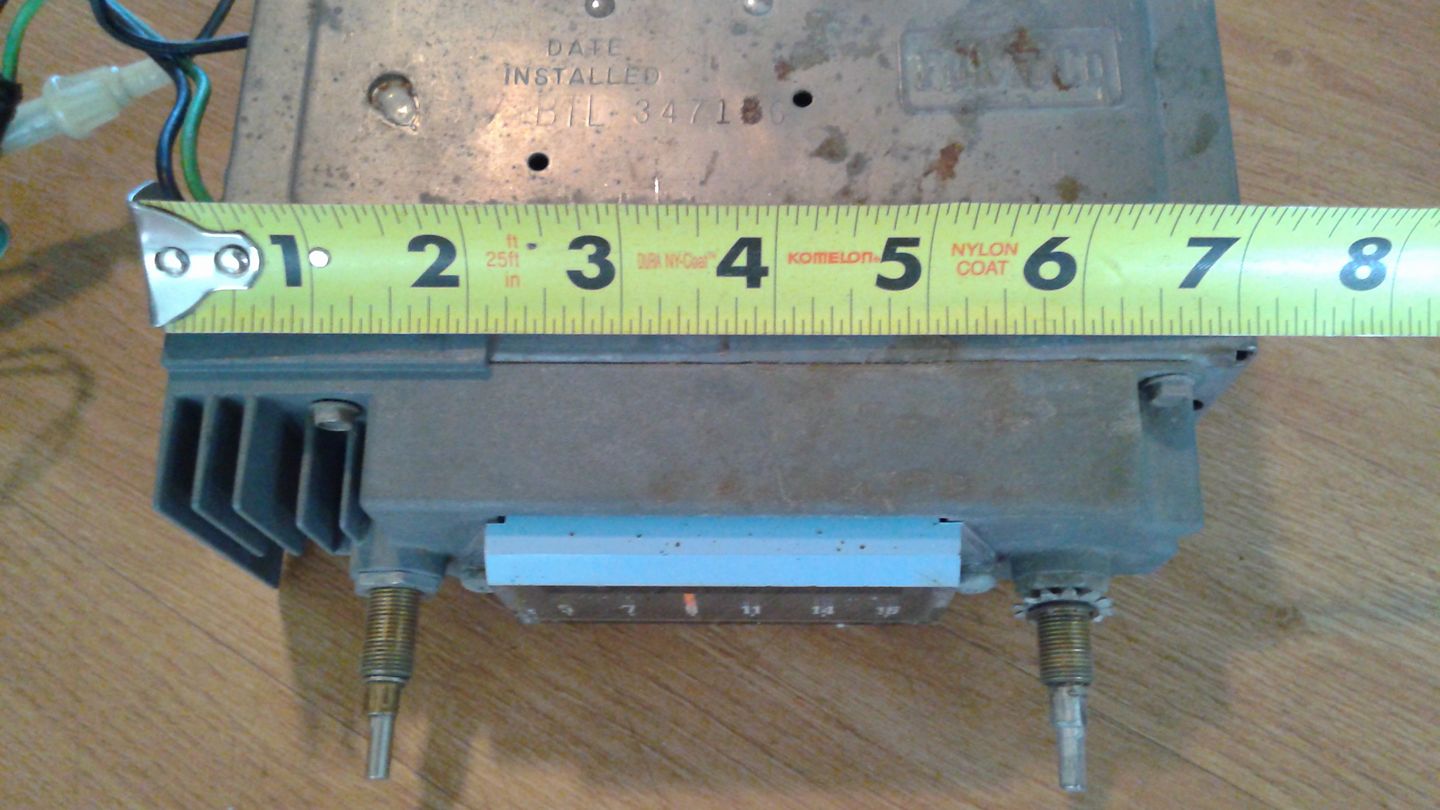

Fig. 03 - Case. 7-1/8" side to side
near front at widest point.

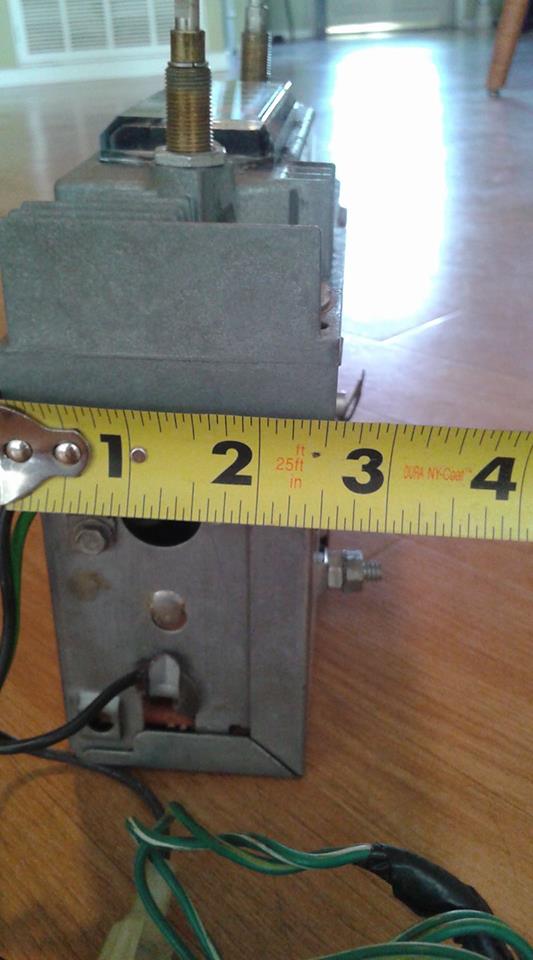

Fig. 04 - Case height. 2-9/16" not including bottom antenna attaching point and mount bolt.

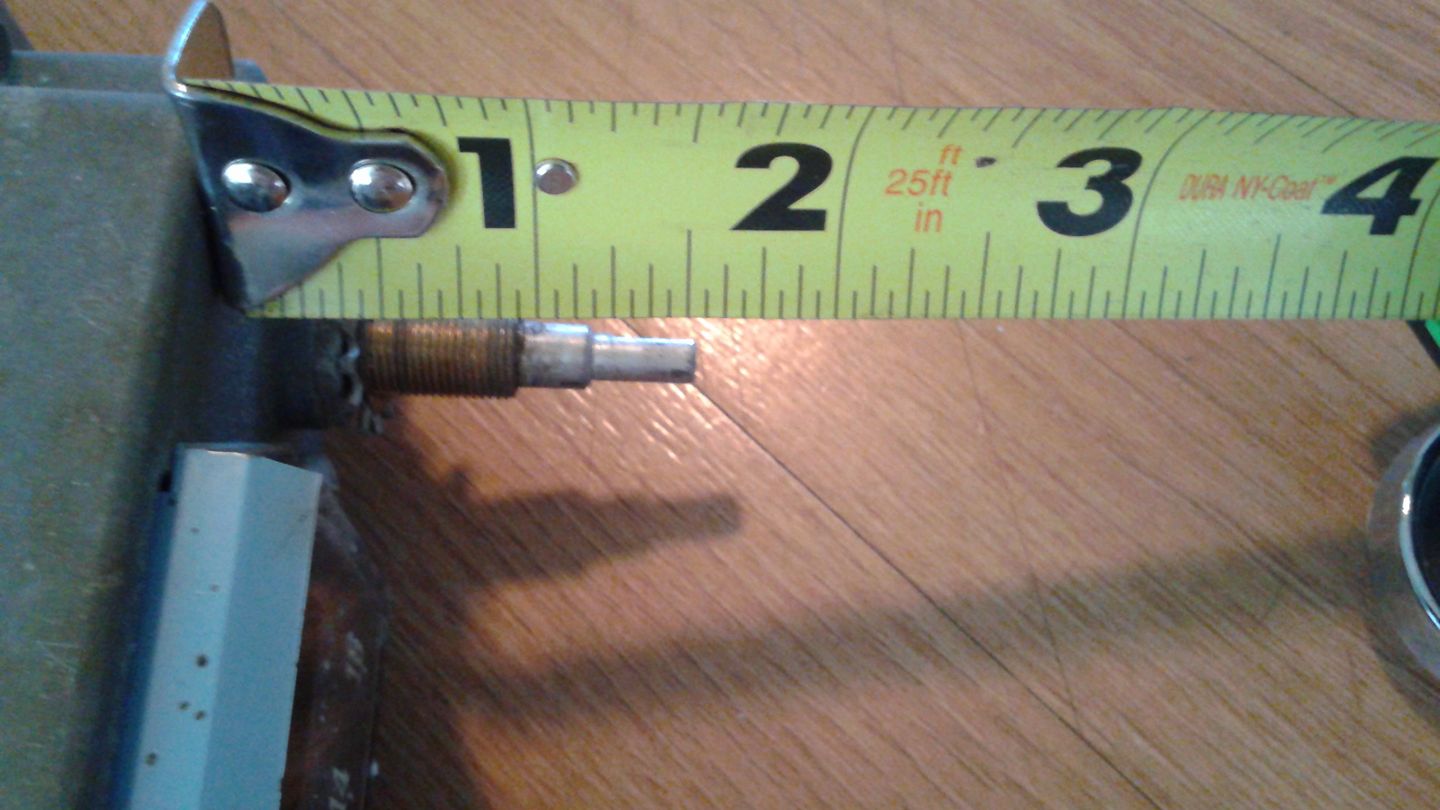

Fig. 05

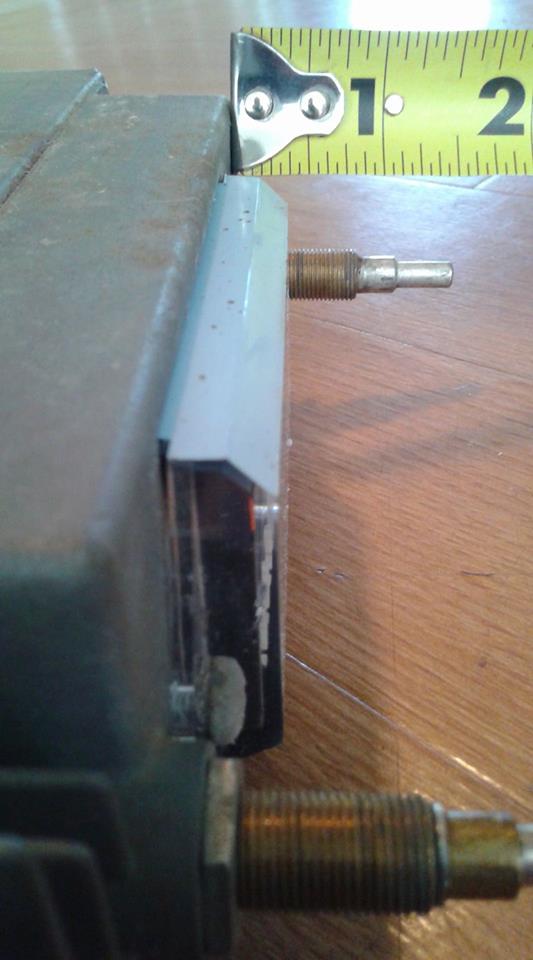

Fig. 06 - Attached tuning number plate sticks out 3/8" from case.

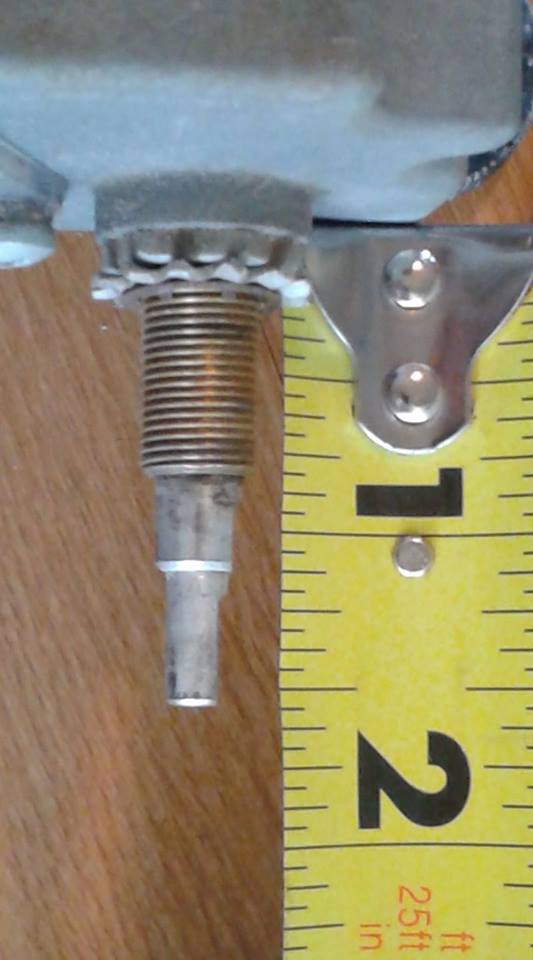

Fig. 07 - Shaft width center to center.
4-11/16"

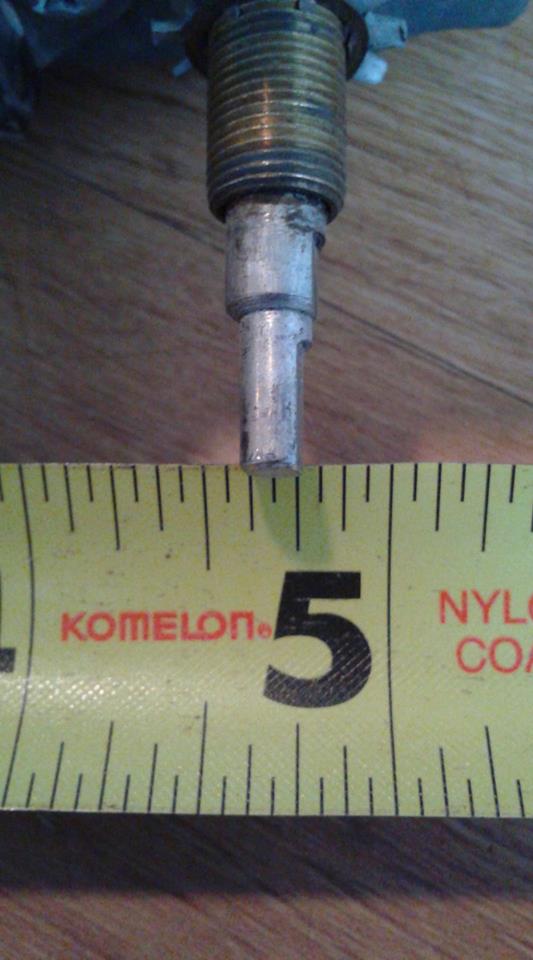

Fig. 08 - Shaft length. 1-9/16"
