1970 Body Builder's Layout Book






Vol. 70 HTM2-L2
November 1969

This 160-page book contained complete dimensions and diagrams for all 1970 Series Ford Trucks. It is designed to expedite the mounting of bodies and special equipment on Ford Trucks, and is also a useful guide for field modifications. The specifications and designs described herein are believed to be accurate as of the time that this book was approved for printing (Nov. 1969), but are not guaranteed.

NOTE: Though this book contains information on the entire lineup of 1970 Ford Trucks, including the HD F-series and the B, C, L and W series, as well as the Econolines, I've only included those specifically pertaining to the light-duty F-100, F-250 and F-350 trucks. Each linked page below will take you to a scan of the diagram(s) and/or info on that page.

WARNING: To preserve detail, these images are very large high-resolution scans, so please be patient while they download.

WEBMASTER'S NOTE: This page is a work-in-progress. Because of the physical size of each page in this manual vs. the size limitations of my flatbed scanner, each scanned image on this page is actually the result of four individual scans which were then stitched together into one. This is a fairly time-consuming process, so please be patient while the work continues. Page numbers that are greyed-out are queued up for processing and will be posted shortly.

Table of Contents

Chassis Drawings
 F100 (114.8" WB) Page 4 - Page 5

 F100 (4x4) (114.8" - 131" WB) Page 6 - Page 7

 F100, F250 (131" WB) Page 8 - Page 9

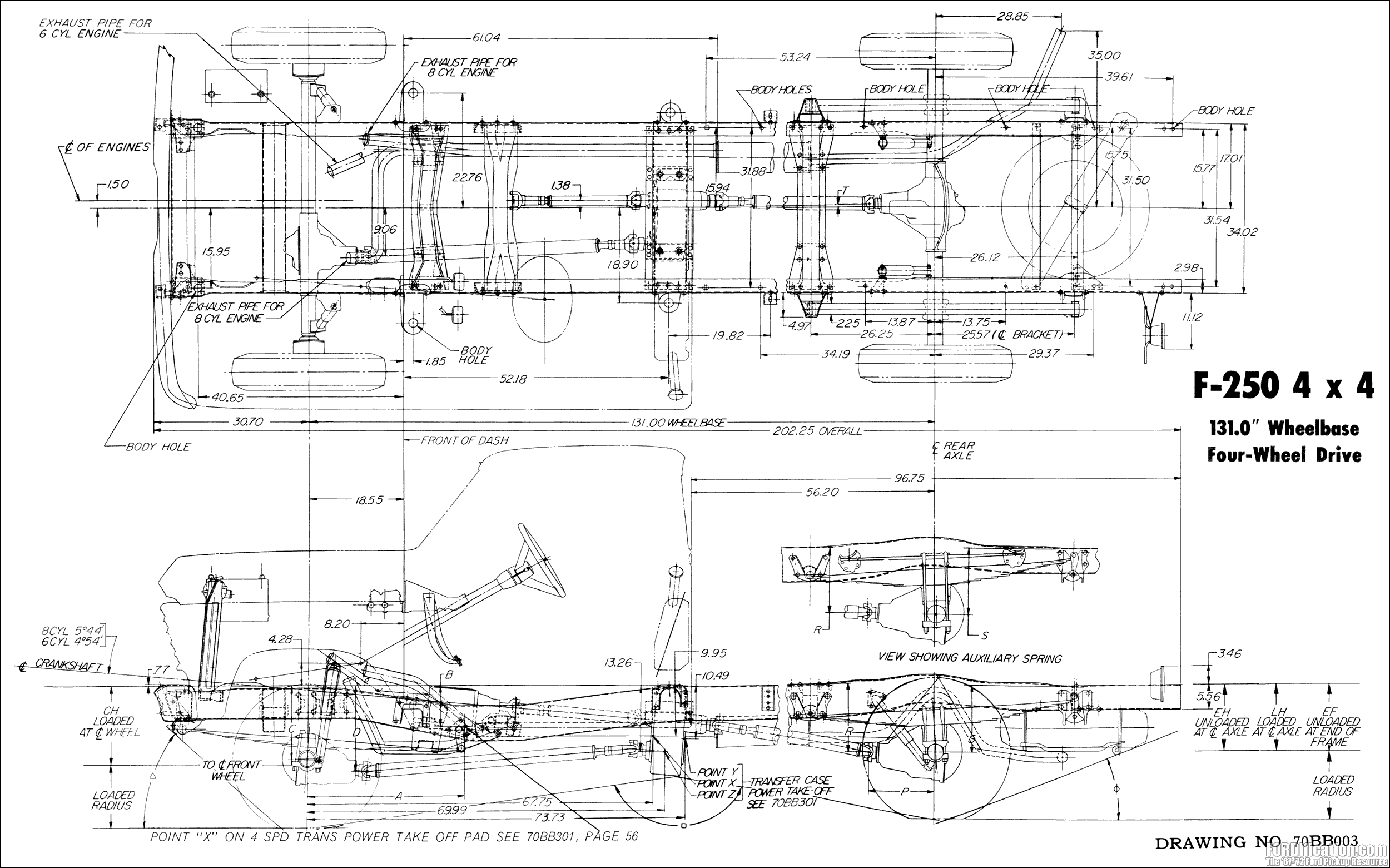

 F250 (4x4) (131" WB) Page 10 - Page 11

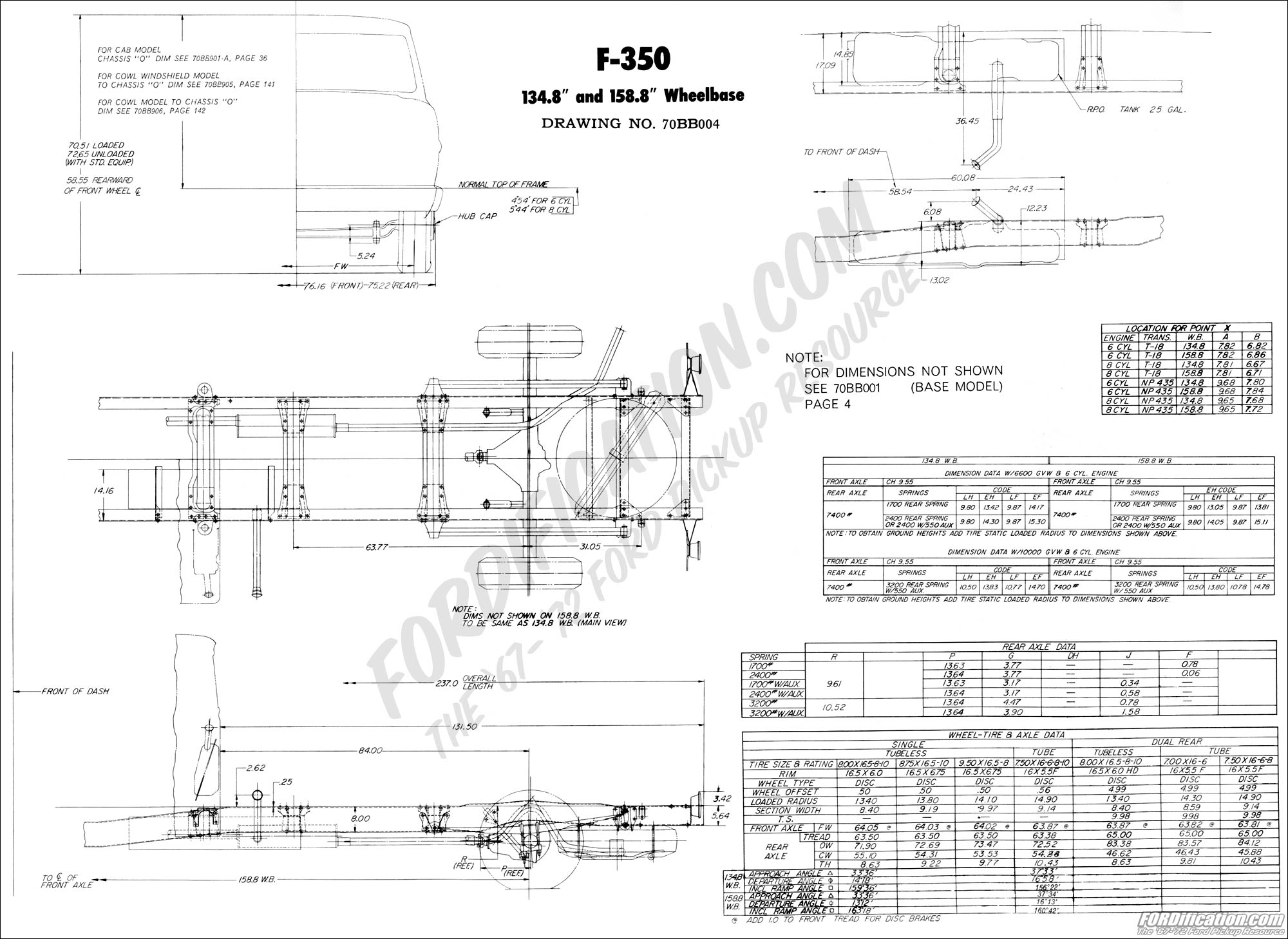

 F350 (134.8" - 158.8" WB) Page 12 - Page 13

Chassis Component & Misc. Data
Transmission Power Take-Off Data

-

-

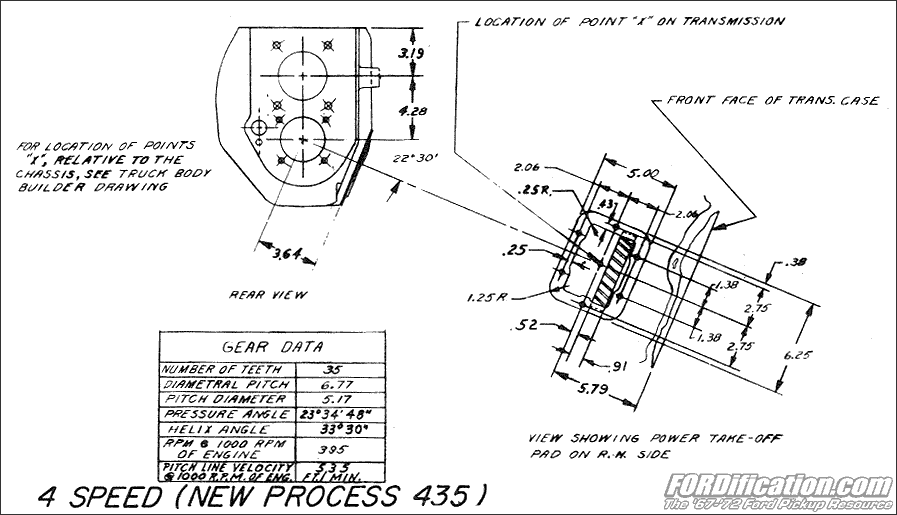

- New Process 435

Page 56

- - - Warner 4-spd T18, T18B, T19 Page 57-1
 - - - Dana 20 2-spd Transfer case 4WD Page 57-2
-  - - Dana 24 2-spd Transfer case 4WD Page 57-3

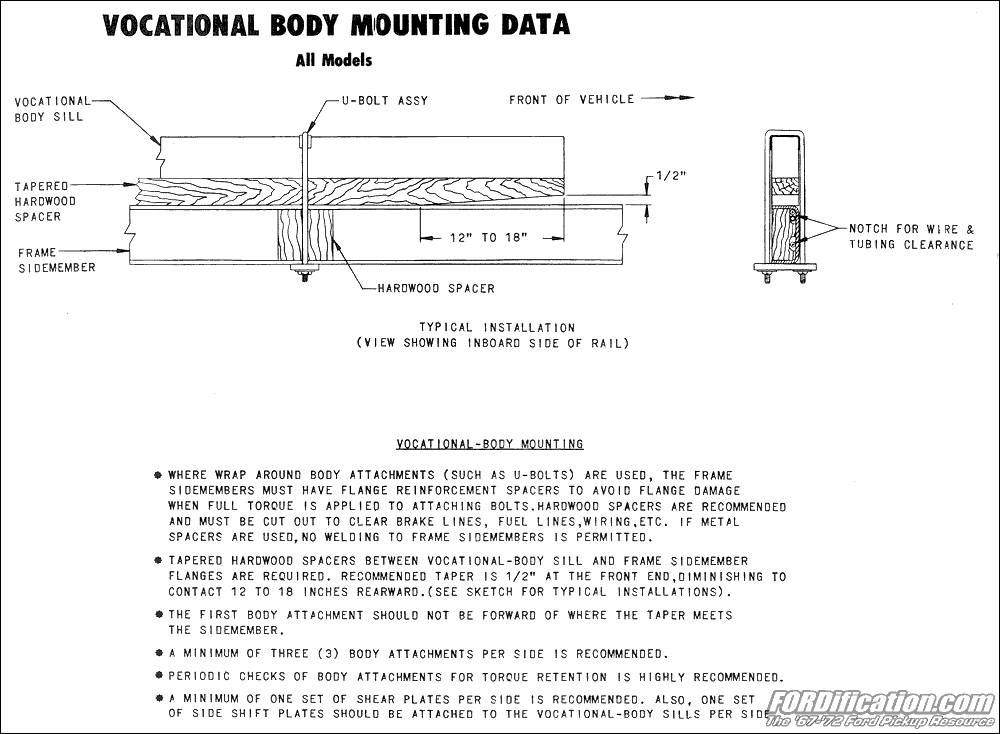

Vocational Body Mounting Data Page 80

Engine Dimensions
360, 390 Cu.-In. 8-cyl. (F100-250-4x2-4x4, F350) Page 83-1

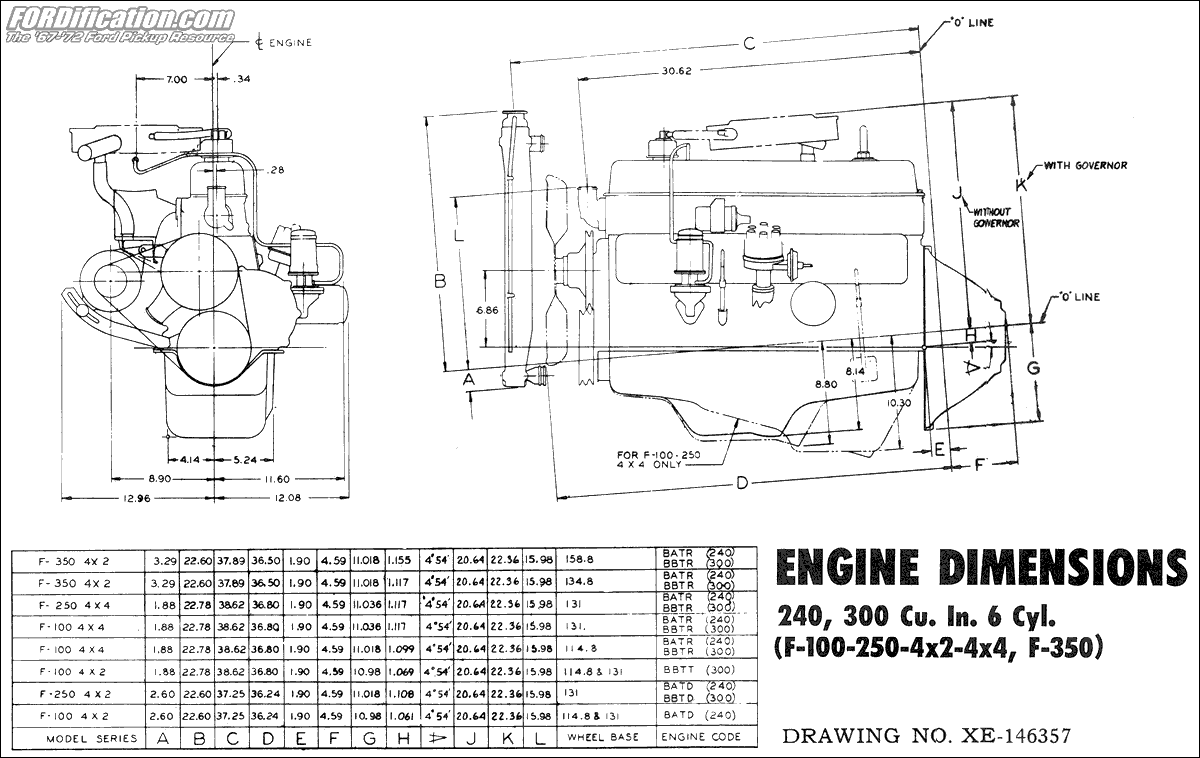

240, 300 Cu.-In. 6-cyl. (F100-250-4x2-4x4, F350) Page 84
302 Cu.-In. 8-cyl. (Econoline) (1) Page 83-2 - Page 85

(1) - PLEASE NOTE: This manual does not show an engine dimensions chart for a 302 engine in an F-series truck, since these weren't not a part of the F-series engine lineup until mid-'69....about the same time this specific manual was printed and couldn't have been included. Therefore, for comparison purposes only I've included these two 302-V8 engine dimensions charts for the Econolines, although some specific dimensions/measurements could vary between the F-series trucks and the Econolines.

Electrical - Master Wiring Diagrams

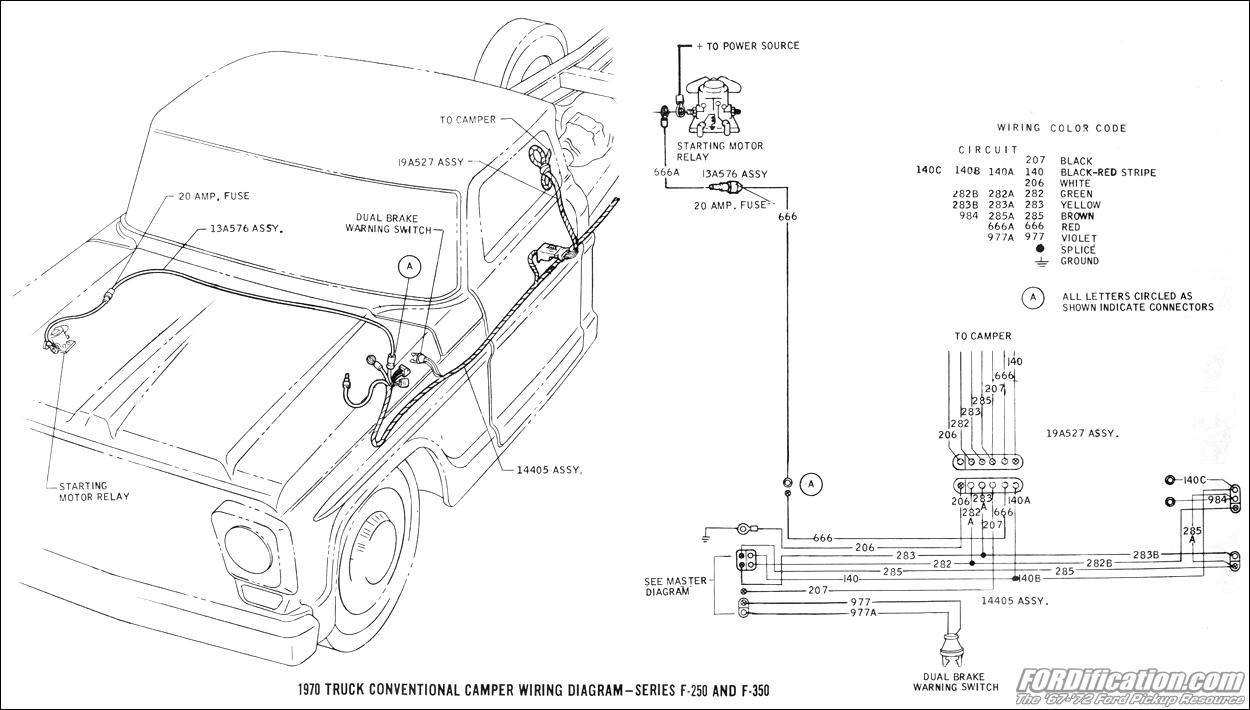

F250, F350 Conventional Cab Camper Wiring Page 95

F100-250-350 Cab and Windshield Models Page 96

F350 Cowl Models Page 97

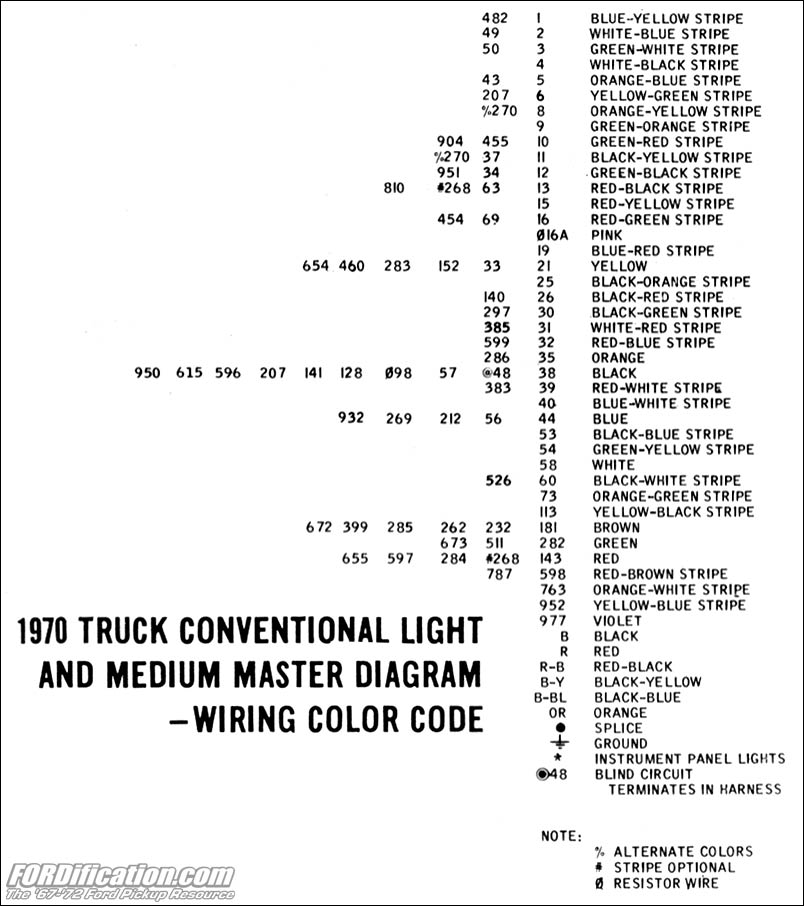

Master Diagram Wire Color Codes Page 116

Electrical - Lamp Wiring Diagrams
F100 thru F350 Cab Models Exterior and Turn Signal Lamps Page 117

F350 Cowl Models Exterior and Turn Signal Lamps Page 118

F250, F350 Platform and Stake Models Rear Lamps Page 121

F250, F350 Platform Models Marker Lamps Page 123

Cab Dimensions
Conventional Cab (Light Duty) Page 136

Cowl Windshield (Light Duty) Page 141
Chassis Cowl (Light and Medium Duty) Page 142

Bodies - Dimensions
Pickup - Styleside Page 143

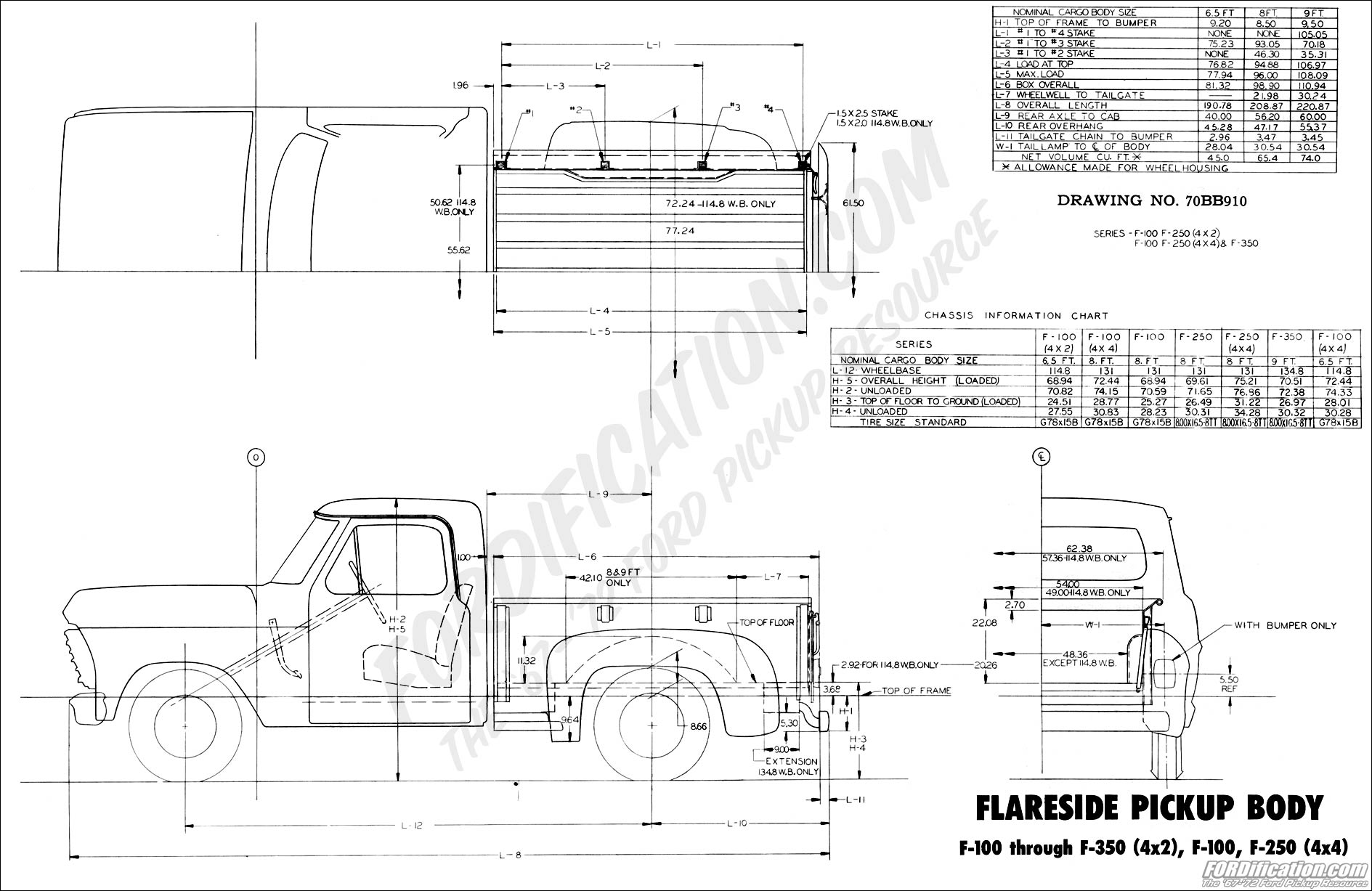

Pickup - Flareside Page 144

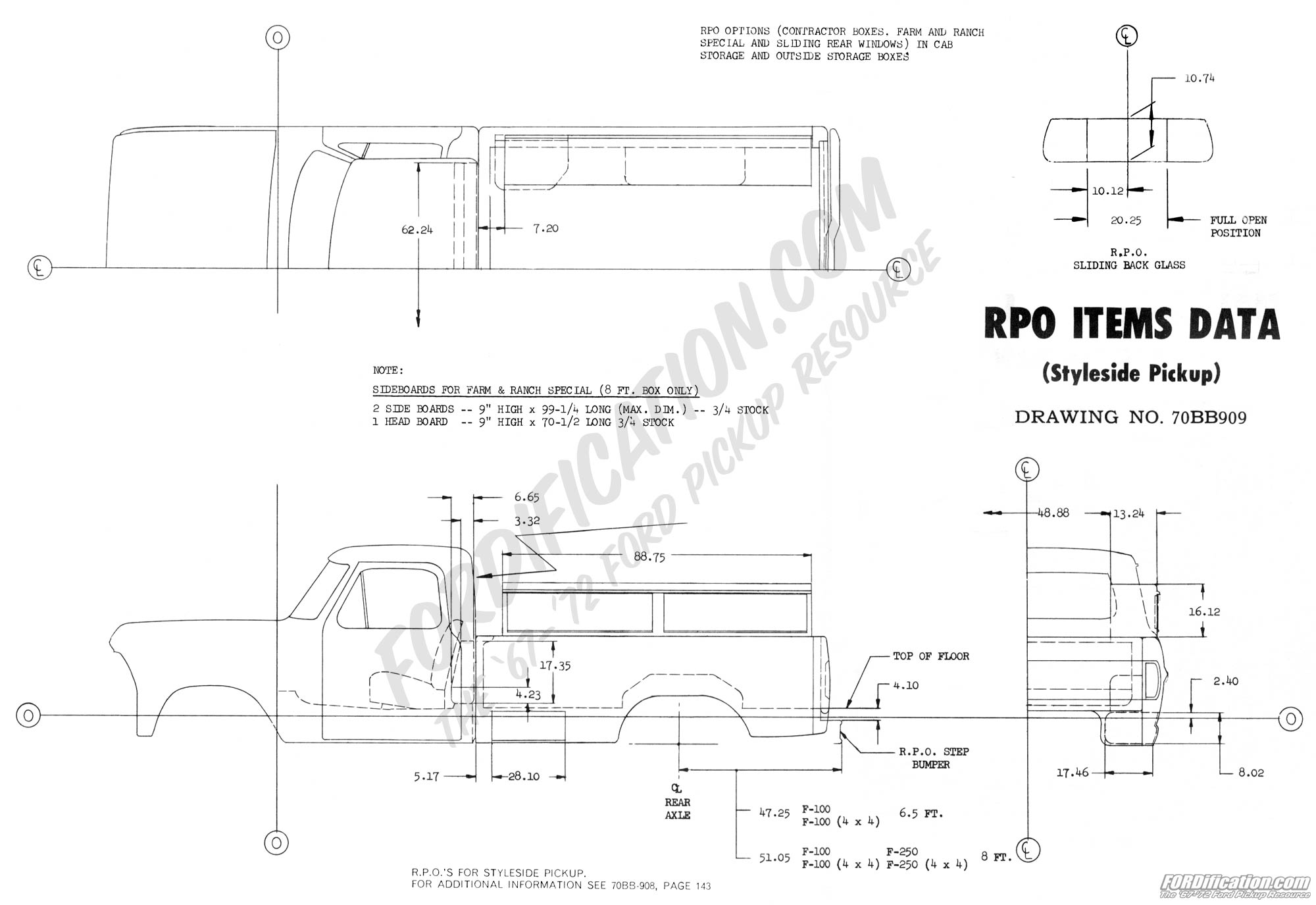

RPO Items for Styleside Pickup Page 145

Stake (Light and Medium Duty) Page 146
