Lower Body Trim Part Numbers



1967-69 (Opt) & Ranger to SN F70000 (Std)
1970-72 Custom (Opt) & Sport Custom (Std)

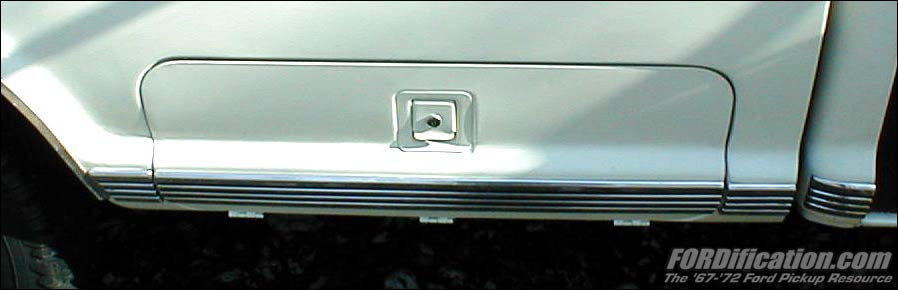

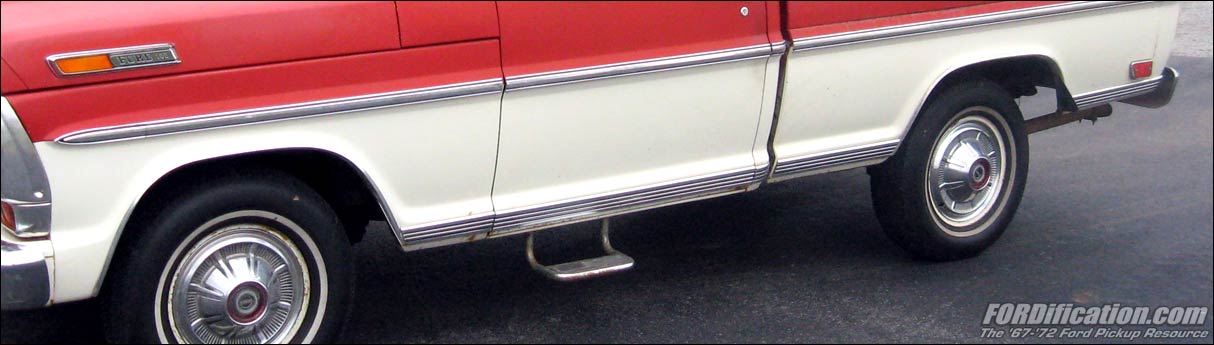

These models used lower trim that was 2 " wide and had 3 black paint stripes.

Front Fender
C7TZ-16003-A RH
C7TZ-16004-A LH

Door
C7TZ-8120878-A RH & LH


Rear of Cab
C7TZ-8140986-A RH
C7TZ-8140987-A LH


Box, Front
C7TZ-9929076-A RH (115" WB)
C7TZ-9929077-A LH (115" WB)
C7TZ-9929076-B RH (131" WB, w/o bodyside tool box)
C7TZ-9920977-B LH (131" WB)
C7TZ-9920976-E RH (131" WB, w/bodyside tool box, between front of box & tool box)
C7TZ-9920976-C RH (131" WB, w/bodyside tool box, on tool box lid)
C7TZ-9920976-D RH (131" WB, w/bodyside tool box, between tool box and wheel opening)

Box, Rear
C7TZ-9929314-B RH (115" WB)
C7TZ-9929315-B LH (115" WB)
C7TZ-9929314-A RH (131" WB)
C7TZ-9929315-A LH (131" WB)

1970-72 Ranger and XLT
from SN F70001 (Std)

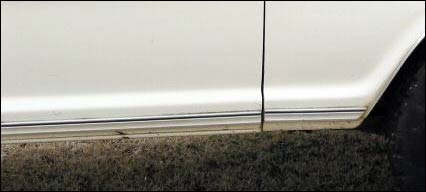

These models used lower trim that was 1 " wide and had 1 black paint stripe.

Front Fender
D0TZ-16003-A RH
D0TZ-16004-A LH

Door
D0TZ-1020878-A RH & LH

Rear of Cab
D0TZ-1040986-A RH
D0TZ-1040987-A LH

Box, Front
D0TZ-9929076-A RH (115" WB)
D0TZ-9929077-A LH (115" WB)
D0TZ-9929076-B RH (131" WB, w/o bodyside tool box)
D0TZ-9920977-B LH (131" WB)
D0TZ-9920976-E RH (131" WB, w/bodyside tool box, between front of box & tool box)
D0TZ-9920976-C RH (131" WB, w/bodyside tool box, on tool box lid)
D0TZ-9920976-D RH (131" WB, w/bodyside tool box, between tool box and wheel) opening)

Box, Rear
Not Used
