Air Conditioning Unit, Factory Integral



NOTE: Items listed below pertain only to the '68-'72 factory integral A/C unit (as shown below), and the listing does not include any numbers for dealer-installed 'hang-on' type A/C setups. Items listed might have other applications (other than '67-'72 F100/350 models) that are not included here.

 Body Codes:
 Cab Parts

81 - Conventional cab
  84 - Cowl
  85 - Cowl/Windshield
 Behind Cab Parts

83 - Flareside box
  86 - Platform/Rack
  99 - Styleside box
All part numbers and specifications are as reported in the 1964-1972 Ford Truck Master Parts Catalog 1975 Final Issue unless otherwise noted.

(CLICK HERE to view listings for engine compartment components for the integral A/C setup.)


Air Conditioning Parts - Passenger Compartment
1968-1972 F100/350 w/Integral A/C

Application Part Number Notes
13466 - Bulb, Lamp
  See Miniature Bulb Application Chart
18K264 - Bracket, Heater Core Support
  '68-'72 F100/350 w/ integral A/C C8TZ-18K264-A
18A361 - Door Assembly, Air Damper
  '68-'72 F100/350 w/ integral A/C C8TZ-18A361-A Heater core
C8TZ-18A361-B Evaporator core
18C434 - Bracket, Air Conditioner Door Control Cable
  '68-'72 F100/350 w/ integral A/C C8TZ-18C434-B Blend door
  '68-'72 F100/350 w/ integral A/C C8TZ-18C434-A Defroster Door
18C466 - Shaft Assembly, Air Conditioner Air Damper Door
  '68-'72 F100/350 w/ integral A/C C8TZ-18C466-A
  372927-S2 Nut - 3/16" Spring steel
18472 - Hose, Heater Water
  '68-'72 F100/350 w/ integral A/C (see note below) C8TZ-18472-D Formed inlet - 14" long
  NOTE: Group 18472 is Ford's basic number for all heater hoses. The MPC doesn't show an individual listing for this preformed hose used on the '68-'72 F100/350 AC/heater unit. Therefore, the listing above comes from the 1972 Ford Truck Parts Catalog, which is correct for this specific piece and should be correct for all '68-'72 F100/350 w/ integral A/C. The January 1980 Ford O.S.I. Catalog lists this number as 'Not Replaced', meaning it should still be good. Also see Group 18573.
18476 - Core Assembly, Heater

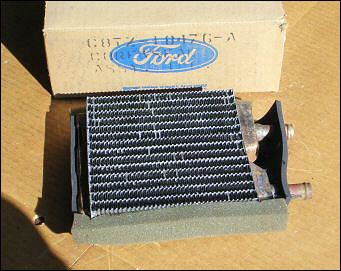

'68-'72 F100/350 w/ integral A/C C8TZ-18476-A
18A482
  Text listing not found in MPC
18518 - Cable Assembly, Fresh Air Heater Temperature
Also refer to Groups 18548 and 19988
  '68 F100/350 w/ integral A/C C7TA-18518-E 31.00" long - cut to size from C1TT-18518-A
'68-'72 F100/350 w/ integral A/C C8TZ-18518-A 28.50" long - used with fresh air heater
  '68-'72 F100/350 w/ integral A/C C8TZ-18518-C 37.38" long
  '67-'69 F-N-NT-T100/1000 C7TZ-18518-B 33.25" long
  Related link: See Factory A/C Control Cable Hookups
18519 - Knob Assembly
Also refer to Groups 17513 and 18534

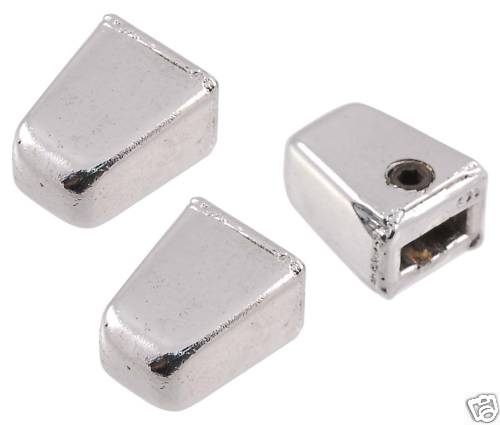

'68-'72 F100/350 w/heater and/or integral A/C C8GY-18519-A
18527 - Motor Assembly, Heater Blower
'68-'72 F100/350 w/ integral A/C C8TZ-18527-A
    34079-S7 Nut, motor to mounting plate or bracket - No. 8-32
    34903-S8 Lockwasher - No. 10
    44713-S8 Flat washer - No. 10
18541 - Wire and Bulb Socket
  Supplied only in 19980 Control Assembly
18548 - Cable Assembly, Defroster Air

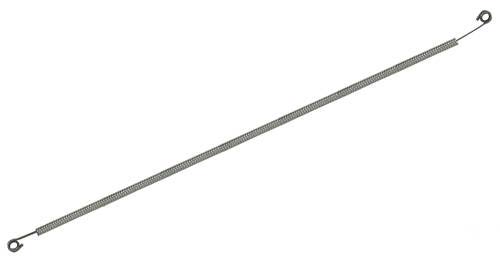

'68-'72 F100/350 exc. w/integral A/C C8TZ-18548-A Defroster - 21.88" long
  '68-'72 F100/350 w/ integral A/C C8TZ-18548-B Defroster
18552 - Cable Assembly, Heater Air

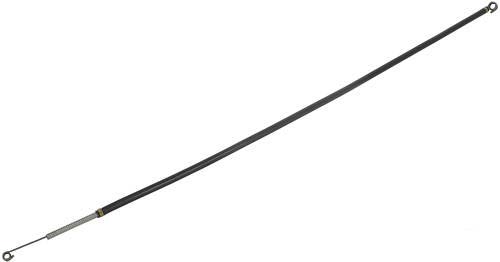

'68-'72 F100/350 w/ integral A/C C8TZ-18552-C Approx. 29.50" long - air conditioner
Changed from C8TZ-18552-B
18A568 - Connector, Heater Inlet Hose
  '68-'72 F100/350 w/ integral A/C C8TZ-18A568-B Connector and retainer
Replaces C8TZ-18A568-A
18573 - Bender, Heater Hose
'64-'72 All D1AZ-18573-A Use with 5/8" I.D. hose - refer to Group 18472
Replaces C9AZ-18573-A
18A636 - Nozzle and Connector Assembly, Windshield Defroster
  '67 F100/350 w/deluxe heater
'68-'72 F100/350
C7TZ-18A636-A (Included in this listing to show difference in part numbers between trucks with A/C vs. non-A/C)
  '68-'72 F100/350 w/ integral A/C C8TZ-18A636-A
18754 / 18755 - Housing, Air Conditioner Blower Motor
  '68-'72 F100/350 w/ integral A/C C8TZ-18754-A Inner
C8TZ-18755-A Outer
18C855
  Typographical error in exploded-view schematic. Should be 19C855 (see Group 19C853 below)
19469 - Door, Blender Air
  '68-'72 F100/350 w/ integral A/C C8TZ-19469-A
19618 - Thermostat, Air Conditioner Evaporator Temperature Control

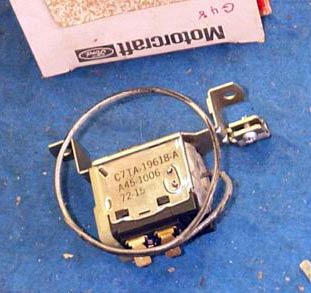

'68-'72 F100/350 w/ integral A/C C8TZ-19618-A
19706 - Resistor Assembly, Air Conditioner Blower Motor
  '68-'72 F100/350 w/ integral A/C C8TZ-19706-B
19C741 - Bracket, Air Conditioner Evaporator Thermostat
  '68-'72 F100/350 w/ integral A/C C8TZ-19C741-A
19752 - Valve Assembly, Air Conditioner Compressor Low Pressure
Also refer to Section 197
  '68-'69 F100/350 w/ integral A/C C8ZZ-19752-A
  '70-'72 F100/350 w/ integral A/C D0AZ-19752-A
19A759 - Door Assembly, Air Conditioner Air Outlet
  '68-'72 F100/350 w/ integral A/C C8TZ-19A759-A
19B769 - Knob, Air Conditioner Air Outlet Door Control
  '68-'72 F100/350 w/ integral A/C C8TZ-19B769-A
    55928-S2 Screw - No. 8-18 x 3/4"
19804 - Plate, Air Conditioner Evaporator Case Mounting
  '68-'72 F100/350 w/ integral A/C C8TZ-19804-B 11" x 12-3/4"
  (Exploded-view diagram shows 19804-A and 19804-B. Text listing in MPC only shows 19804, but parts are completely different.)
19834 - Wheel Assembly, Blower Motor
  '68-'72 F100/350 w/ integral A/C C8TZ-19834-A
19837 - Liquid Line, Air Conditioner Dryer to Evaporator
  See Refrigerant Line Replacement and Repair Parts (COMING SOON)

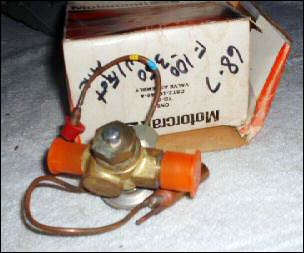

19849 - Valve Assembly, Air Conditioner Evaporator Expansion
'68-'72 F100/350 w/ integral A/C C8TZ-19849-A
19C853 - Bracket Assembly, Air Conditioner Mounting, Front
  '68-'72 F100/350 w/ integral A/C C8TZ-19C853-A R.H.
C8TZ-19C855-A L.H.
  '68-'72 F100/350 w/ integral A/C C8TZ-19C853-B Rear - includes reinforcement
    40927-S8 Screw - 1/4"-20 x 1/4"
    63357-S2 Rivet - 5/32" x 1/2" oval head
19858 - Hose, Air Conditioner Evaporator Drain

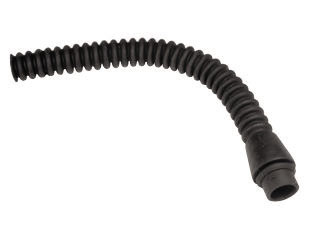

'68-'72 F100/350 w/ integral A/C C8TZ-19858-A
(See NOTE 2)
Rubber
(NOTE 1: also used on '64-'68 Mustang w/A/C)
(NOTE 2: 1980 O.S.I. Catalog says 'Replaced by: Improvise')
19A859 - Link Assembly, Air Conditioner Air Damper Door
  '68-'72 F100/350 w/ integral A/C C8TZ-19A859-A
19860 - Core Assembly, Air Conditioner Evaporator
  '68-'72 F100/350 w/ integral A/C C8TZ-19860-C Replaces C8TZ-19860-A
19C861 - Reinforcement, Air Conditioner Mounting Bracket
  '70-'72 F100/350 w/integral A/C D0HZ-19C861-A
    42141-S8 Screw - No. 10-12 x 3/4"
19A885 - Wiring Assembly, Air Conditioner Thermostat to Clutch
  '68-'72 F100/350 w/ integral A/C C8TZ-19A885-A
19C885 - Plate Assembly, Air Conditioner Evaporator Case Mounting
  '68-'72 F100/350 w/ integral A/C C8TZ-19C885-A
19893 - Register
Also refer to Groups 19A671 & 19C626
  '68-'70 F100/350 w/integral A/C C8TZ-19893-A Wheel type control
  '70-'72 F100/350 w/integral A/C D0TZ-19893-B Knob type control
19A945 - Switch Assembly, Air Conditioner Temperature Control
  '68-'72 F100/350 w/ integral A/C C8TZ-19A945-A
19A950 - Retainer, Air Conditioner Register Mounting
  '68-'72 F100/350 w/integral A/C C8TZ-19A950-A
19980 - Control Assembly, Air Conditioner
  '68-'72 F100/350 w/integral A/C C8TZ-19980-B Replaces C8TZ-19980-A
19986 - Switch Assembly, Air Conditioner

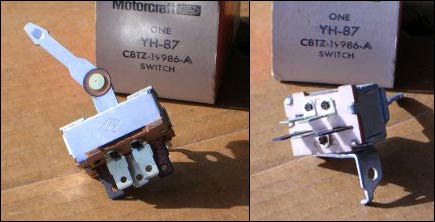

'68-'72 F100/350 w/integral A/C C8SZ-19986-B Replaces C8TZ-19986-A
19988 - Cable Assembly, Air Conditioner Temperature
  '68-'72 F100/350 w/integral A/C C8TZ-19988-A Approx. 22-3/4" long
19A995 - Bezel, Air Conditioner Register
  '68-'69 F100/350 w/integral A/C C8TZ-19A995-A
  '70-'72 F100/350 w/integral A/C D0TZ-19A995-B
19A999 - Baffle, Air Conditioner Evaporator Case
  '68-'72 F100/350 w/integral A/C C8TZ-19A999-A
  (NOTE: Exploded-view diagram shows two completely different parts labeled as '19A999', but MPC text only lists the above.)



Symbol (in the text listings or exploded-view diagram) indicates part is not supplied for service due to the following:
  a. Part is superseded and replaced as indicated in the description column of text
b. Part can be improvised as indicated in the description column of text
c. Due to it's function there would be little or no demand
