You are here: Home Part Numbers Index Air Conditioning, Factory Integral (Engine Compartment)
Back to Part Numbers Index

Air Conditioning, Factory Integral (Engine Compartment)



NOTE: Items listed here specifically pertain to '67-'72 Ford F100/350 trucks, but may have other applications (other Ford car/van/truck models) that are not included. NOT included are items for dealer-installed hang-on A/C systems.

 Body Codes:
 Cab Parts

81 - Conventional cab
  84 - Cowl
  85 - Cowl/Windshield
 Behind Cab Parts

83 - Flareside box
  86 - Platform/Rack
  99 - Styleside box
All part numbers and specifications are as reported in the 1964-1972 Ford Truck Master Parts Catalog 1975 Final Issue unless otherwise noted.

Air Conditioning Parts - Engine Compartment
1968-1972 F100/350 - 8 cyl. 360, 390 - w/integral A/C

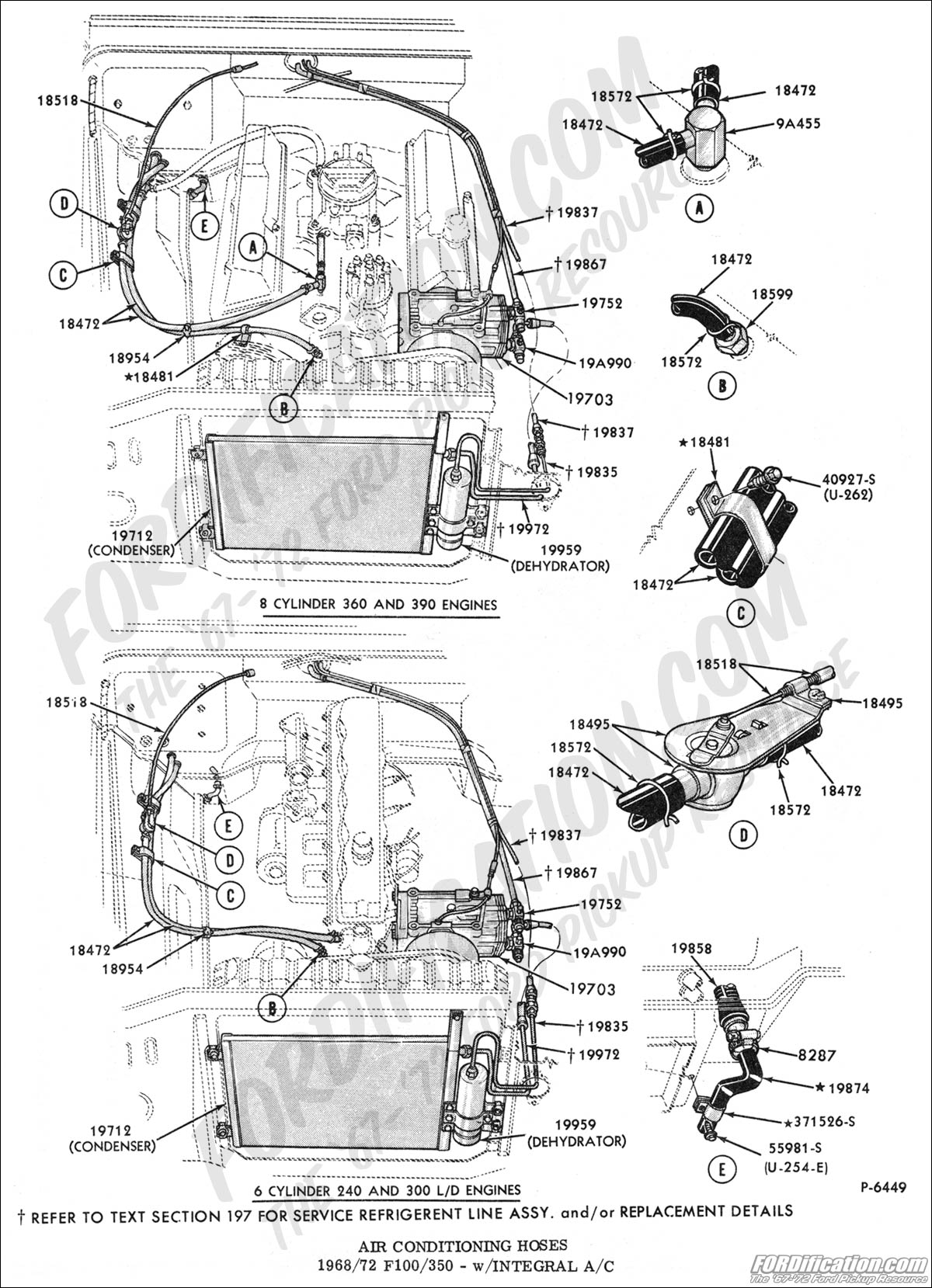

Air Conditioning Hoses, Engine Compartment

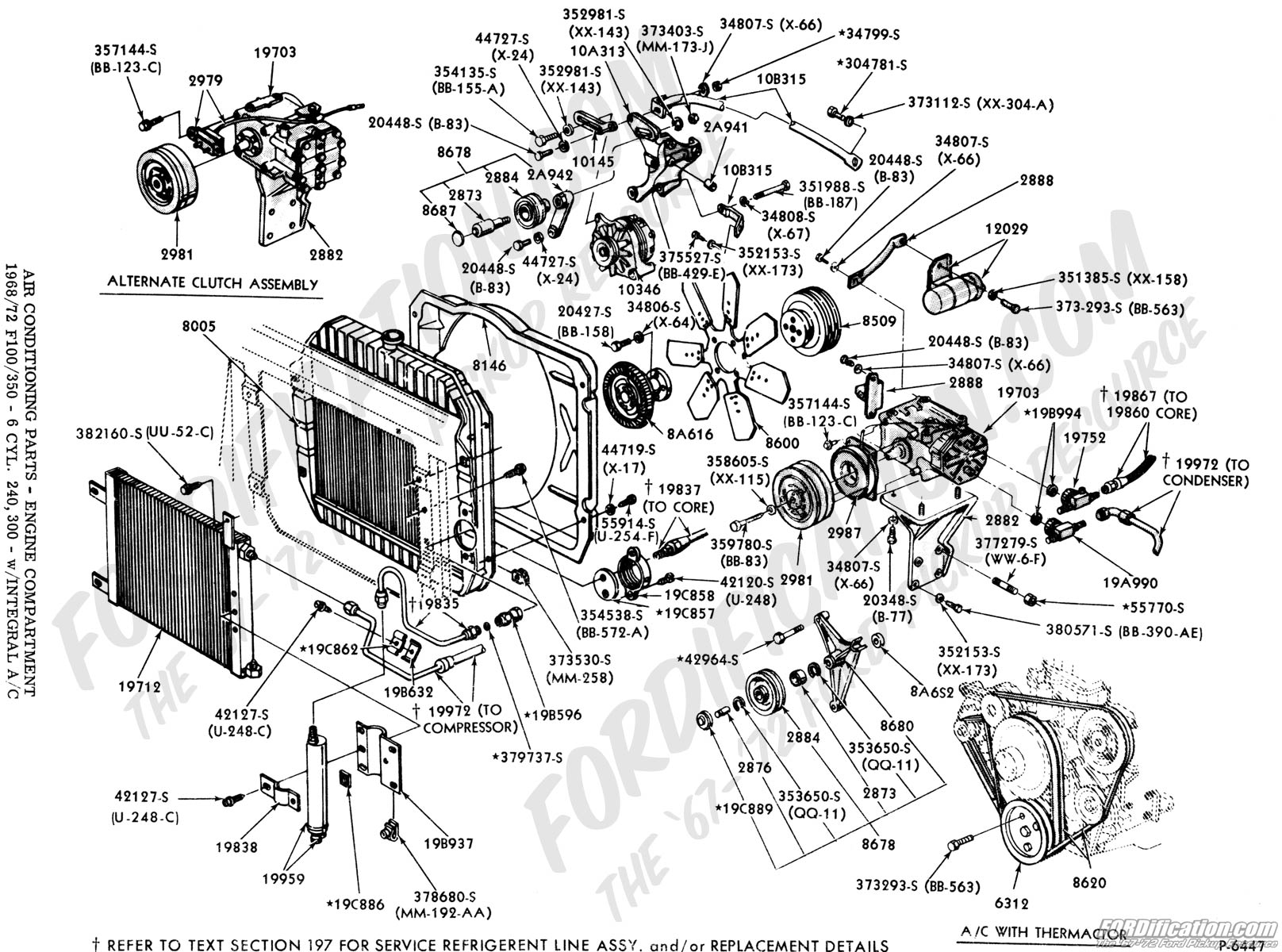

1968-1972 F100-F350 - 6-cyl. 240, 300 - w/integral A/C

Air Conditioning Hoses (Engine Compartment)
1968-1972 F100-F350 - w/integral A/C

2882 - Bracket, Air Compressor to Cylinder Block (A/C compressor to block)
  '68-'69 F100/350 (Model 81)
"Before Ser. E10,001"
C7AZ 2882-A With integrated heater & A/C
  '68-'72 F100/350 (8 cyl.) C6SZ 2882-A With A/C & power steering
  '68-'72 F100/350 (Model 81) "8 cyl. - Gas C80Z 2882-A Without P/S & with integrated heater & A/C
2888 - Brace, Air Compressor (A/C Compressor brace)
  '69-'72 F100/350 6-cyl. C9UZ-2888-B w/ integrated heater & A/C
  '68 F100/350 (Models 81, 85) - 6-cyl. C6AZ-2888-C w/ integrated heater & A/C
  '68 F100/350 (Models 81, 85) - 6-cyl. C6AZ-2888-D Use as front brace w/ integrated heater & A/C
  '68-'70 F100/350 8-cyl. C8OZ-2888-B With air conditioning
  '71-'72 F100/350 8-cyl. D1TZ-2888-A With air conditioning
2889 - Brace, Air Compressor Rear (A/C Compressor brace)
  '69-'72 F100/350 6-cyl. "From Ser. C70,001" C9UZ-2889-B With integrated heater & A/C
  '68 F100/350 (Models 81, 85) - 8-cyl. C7AZ-2889-C With integrated heater & A/C
  '69-'70 F100/350 (Models 81, 85) - 8-cyl. C5MY-2889-A With integrated heater & A/C
  '71-'72 F100/350 8-cyl. D1TZ-2889-A With A/C
2987 - Field, Air Conditioner Compressor - with Pilot Bushing
  '68-'72 F250/350 C8AZ-2987-D *YB-43 - with integrated heater & A/C
  '68-'71 F100 C8AZ-2987-D With integrated heater & A/C
  '72 F100 C9AZ-2987-A With integral A/C - use with C9AZ-2884-D clutch
3A732 - Bracket, Power Steering Pump Adjusting
  '67-'70 F100/250 (6-cyl.) 4x2 w/factory-installed A/C and P/S C7AZ-3A732-A Two slots
  '67-'70 F100/350 (8-cyl 360, 390) A/C DOTZ-3A732-A
8146 - Shroud, Fan
Year Model Cyl. C.I.D. Description Part Number
'66-'67 F100/250 with A/C & X/C 6 240 Plastic - 19 3/4" dia. center hole
part of C6TZ-19B969-E
C6RZ-8146-A
'68 F100/250 (4x2) - A/C 6 240, 300   C8TZ-8146-B
'68 F100/250 (4x4), F350 (A/C) 6 240, 300   C8TZ-8146-J
68-'72 F100/350 (A/C)
'68-'70 F100/250 (X/C) w/ or w/o A/C 8 360, 390   C8TZ-8146-K
'71-'72 F100/250 (4x2) S/C & X/C w/ or w/o A/C
"Before Ser. P40,001"
'71-'72 F100/250 (4x4) - X/C - w/ or w/o A/C
'71-'72 F350 (w/ S/C) Calif. only - "Before Ser. P40,001"
'71-'72  F250 (4x4) - (w/ S/C) - Calif. only
"Before Ser. P40,001"
'72 F100/250 (4x4) - S/C - exc. Calif.
"Before Ser. P40,001"
'72 F350 (S/C) - exc. Calif.
'72 F100/250 (4x2 & 4x4) - S/C & X/C - w/ or w/o A/C
"From Ser. P40,001"
8 360, 390 #D3TA-DA D3TZ-8146-C
'72 F350 S/C "From Ser. P40,001"
'68-'70 F350 (X/C) w/ or w/o A/C 8 360, 390 #C7TA-8146-H, D2TA-8146-A,
D3TA-8146-JA

mounting holes 21-3/8" high - 27-1/8" across
C7TZ-8146-B
'71 F350 with A/C
'71-'72 F100 (4x4), F250 - (w/ S/C & X/C) - w/ or w/o A/C
'72 F350 (X/C) - exc. Calif.

# Identification Marking

8509 - Pulley, Water Pump
  See Pulley, Water Pump
8600 - Fan Blade Assembly
  Refer to Fan Blade Assembly
8A616 - Clutch Assembly, Fan
  '68-'69 F100/350 with A/C C4SZ-8A616-B 240, 300, 302, 360, 390
    377937-S Bolt, clutch to water pump - 5/16"-24 x 1"
8678 - Pulley Assembly, Belt Idler
  Refer to Group 8678
8680 - Bracket, Belt Idler Pulley
  Refer to Group 8678
8687 - Shield, Idler Pulley Bearing Dust
  Refer to Group 8678
10145 - Arm, Alternator Belt Adjustment
  See Alternator Mounting Parts
10A313 - Arm, Alternator Belt Adjustment
  See Alternator Mounting Parts
10A370 - Spacer, Alternator
  See Alternator Mounting Parts
19712 - Core Assembly, Air Conditioner Condenser
  '68-'72 F100/350 w/ integral A/C
"Before Ser. N40,001"
C8TZ-19712-A
  '72 F100/350 w/ integral A/C
"From Ser. N40,001 to Ser. P40,001"
D2TZ-19712-A
  '72 F100/350 w/ integral A/C
"From Ser. P40,001"
D3TZ-19712-A
19838 - Clamp, Air Conditioner Dehydrator Tank
  '68-'71 F100/350 w/ integral A/C
"Before Ser. P40,001"
C8TA-19838-A
  '72 F100/350 w/ integral A/C
"From Ser. P40,001"
D3TZ-19838-A
19C858 - Retainer, Air Conditioner Lines to Radiator Support Seal
  '68-'72 F100/350 w/ integral A/C C8TZ-19C858-A
    42120-S8 Screw - No. 10-16 x 3/8"
19B937 - Bracket, Air Conditioner Dehydrator Tank Mounting
  '68-'71 F100/350 w/ integral A/C
"Before Ser. P40,001"
C8TZ-19B937-A
42014-S8 Screw No. 10-12 x 5/8"
  '72 F100/350 w/ integral A/C
"From Ser. P40,001"
D3TZ-19B937-A
19959 - Dehydrator and Receiver Tank Assembly, Air Conditioner
  '68-'72 F100/350 w/ integral A/C
"Before Ser. M80,001"
D2TA-19959-AA Replaces C8TZ-19959-A
  '72 F100/350 w/ integral A/C
"From Ser. M80,001 to N40,001"
D2TA-19959-AA
  '72 F100/350 w/ integral A/C
"From Ser. N40,001"
D2TA-19959-AB Replaces D2TZ-19959-B
19990 - Valve Assembly, Air Conditioning Compressor, High Pressure
  '68-'69 F100/350 w/ integral A/C C8AZ-19A990-A
  '70-'72 F100/350 w/ integral A/C D0AZ-19A990-A











00000 - Part Name






Symbol (in the text listings or exploded-view diagram) indicates part is not supplied for service due to the following:
  a. Part is superseded and replaced as indicated in the description column of text
b. Part can be improvised as indicated in the description column of text
c. Due to it's function there would be little or no demand
